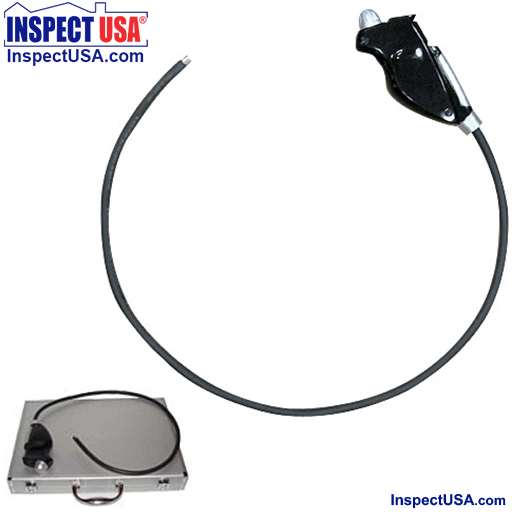

Video Image Scope (DCFOS900) Fiber Optic Endoscope

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

This video scope connects directly to a PC or Laptop with Windows operating system installed. It does not require a battery since the power comes directly from the USB cable that is attached to the computer. The image is sent directly to the PC in high resolution allowing it to take still pictures and record video instantaneously. It is a whole new innovation and utilizes the IT technique to transfer images instead of transferring through the optical fiber. The way of transferring image of this scope is quite different with the traditional optical fiber endoscope. It is the total solution for replacing traditional industrial endoscope.

Features:

• Fiberoptic inspection scope connects directly to your PC facilitating picture and video recording via USB
• Flexible cable for easy operation and inspects hard-to-reach areas
• Equipped with LED lamp for clear viewing with a lifespan of 100,000 hours and micro camera technology
• Auto focus & white balance functions
• Interlock cable is 36” long and 0.42" (10mm) in diameter
• Knob at the end of the hand grip permits fine adjustments for a better quality image
• Picture and video recording is possible
• The flexible fiber optic cable make the endoscope can be bent repeatedly to a radius of 8 inch without damage
• The coherent bind of fibers transfers high quality images and films from the objects, and when activated, light from source in the handle pass through the cable and guide down to the tip of scope to illuminate the viewing area.
• Applications: Automotive, Aircraft, Marine, Locksmiths, Electricians, Mechanics, Law Enforcement, Plumbers, Welders, Inspectors any many more.
• Revolutionary flexible shaft adjusts into almost any position & allows easy one-handed operation
• Knob at the end of the hand grip permits fine adjustments for a better quality image

Specifications:

• Tip insertion diameter: 0.42" (10mm)
• Shaft length: 36"
• Image transfer material : Micro Camera + Flexible Flat Cable
• Resolution: 1.3 Million Pixels
• Brightness of bulb: 190 LUX
• Type of bulb: LED bulb
• Life of bulb: approximately 100,000 hours
• USB format: USB 1.1
• Net weight: approximately 260g
• Battery needed: None
• Operating temperature:
  • Handle: -4° to 158° F (-20° to 70° C)
  • Shaft: -4° to 140° F (-20° to 60° C)
• Storage temperature: Shaft: -4° to 140° F (-20° to 60° C)
• Do not submerse handle (housing) in any liquid

Supplied with:

• USB cable
• Heavy duty carrying case
• Software for Windows operating system
