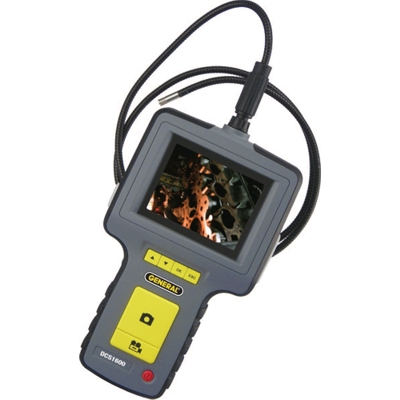

Digital Video Scope 0.216" x 39" (DCS1600HP) Obedient Shaft 3.5" LCD

Reference only — not for sale

Model	DCS1600HP
Manufacturer	General Tools
Category	Borescopes
Status	Discontinued

Browse all Borescopes Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Portable, hand-held, complete Borescope system with monitor, camera and video output.

Features:

3.5" (89mm) extra-wide TFT monitor
Revolutionary mobility, no need to transport large multiple components
Compact, palm-sized unit includes LED light source, TFT (Thin film transistor) display, camera and recorder
External diameter tip easily fits through the spark plug hole of any engine
Takes still photos and dynamic video in real time
Internal SD memory allows user to save a whole video and output later
TV monitor output, Computer USB output
Optimized illumination
Water, oil and scratch resistant
Data logging function with Date & Time
Auto power off (programmable)
Multiple viewing tips and extra wide view angle
Multiple video formats compatible with most software including Windows Media Player
Rechargeable batteries can record for 4 hours continuously
Rapid assembly of lens module
4 super-strength white LED lights inside the tip

Specifications:

Tip insertion diameter: 0.21654" (5.5mm)
Shaft length: 39" (1 meter)
Image sensor: CMOS type
Resolution:
- Dynamic: 320(H) x 240(V)
- Static: 640(H) x 480(V)
Frame rate: ~30fps
Exposure: automatic
White balance: fixed
Field of view:
- Horizontal Field Angle 46 degrees
- Vertical field angle-34 degrees
- Diagonal field: angle-56 degrees
Depth of field: 1.5to 6cm
Display: 3.5" extra-wide TFT LCD monitor 320 x 240 pixels
Video output: NTSC & PAL
Recording medium: SD card (capacity up to 2G)
Compression format: MPEG4
Still image storage format: JPEG (640 x 480)
Video recording format: ASF (320 x 240)
Light source: 4 super-strength white light LEDs
Illumination intensity easily adjusts to environment
Operating temperature:
- Handle: -4° to 158° F (-20° to 70° C)
- Shaft: -4° to 140° F (-20° to 60° C)
Storage temperature: Shaft: -4° to 140° F (-20° to 60° C)
Temperature range during charge: 32° to 104° F (0° to 40° C)
Power:
- Battery rechargeable Li-Polymer battery, 3.7V
- Power supply AC 100-240V 50-60Hz
Power consumption DC5.5 1.8A
