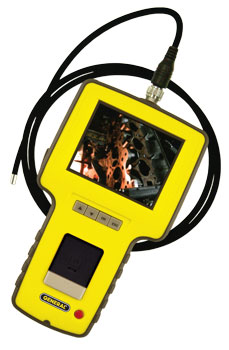

Video Scope 78" x 0.21654" (DCS1500-2) with TFT LCD Display

Reference only — not for sale

Model	DCS1500-2
Manufacturer	General Tools
Category	Borescopes
Status	Discontinued

Browse all Borescopes Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Portable, hand-held, complete Digital Borescope system with LCD monitor, camera, memory and video output.

Features:

Revolutionary mobility, no need to transport large multiple components
Compact, palm-sized unit includes LED light source, TFT (Thin film transistor) display, camera and recorder
External diameter tip easily fits through the spark plug hole of any engine
Takes still photos and dynamic video in real time
Internal SD memory allows user to save a whole video and output later
TV monitor output, Computer USB output
Optimized illumination
Oil and scratch resistant
Data logging function with Date & Time
Auto power off (programmable)
Multiple viewing tips and extra wide view angle
Multiple video formats compatible with most software including Windows Media Player
Rechargeable batteries can record for 4 hours continuously
Rapid assembly of lens module

Specifications:

Tip insertion diameter: 0.21654" (5.5mm)
Shaft length: 78" (2 meters)
Image sensor: CMOS type
Resolution:
- Dynamic: 320(H) x 240(V)
- Static: 640(H) x 480(V)
Frame rate: ~30fps
Exposure: automatic
White balance: fixed
Field of view: 67°
Depth of field: 1.5 ~ 10cm
Display: 3.5" extra-wide TFT LCD monitor 320 x 240 pixels
Video output: NTSC & PAL
Recording medium: SD card (capacity up to 2G)
Compression format: MPEG4
Still image storage format: JPEG (640 x 480)
Video recording format: ASF (320 x 240)
Light source: 4 super-strength white light LED’s
Illumination intensity easily adjusts to environment
Operating temperature:
- Handle: -4° to 158° F (-20° to 70° C)
- Shaft: -4° to 140° F (-20° to 60° C)
Storage temperature: Shaft: -4° to 140° F (-20° to 60° C)
Temperature range during charge: 32° to 104° F (0° to 40° C)
Power: 5vDC
Battery: Rechargeable Li-Polymer (3.7v)
