Anemometer: Vane 59.1-6889 FPM (DAFM3B) CFM, Temp & Humidity

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Anemometer: Vane 59.1-6889 FPM (DAFM3B) CFM, Temp & Humidity

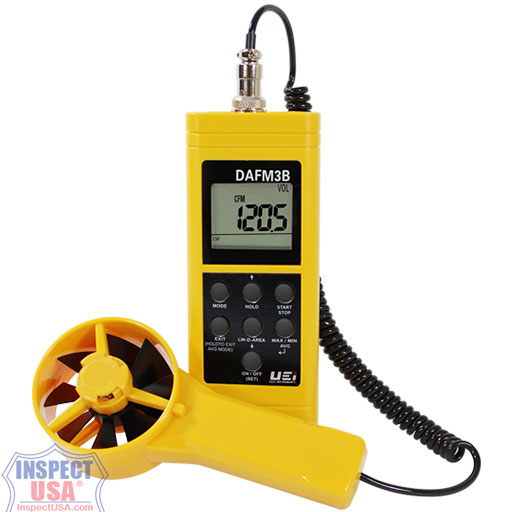

The DAFM3B Anemometer/Psychrometer is designed with 6 HVAC/R parameters in one instrument. These are included in a portable, battery-operated instrument for measuring humidity, air temperature, dew point, wet bulb, air velocity and air volume. The vane probe includes
sensors for velocity, temperature and humidity.

Features:

• Measures Air Velocity, Temperature and Humidity
• Calculates Wet Bulb, Dew Point, and Air Volume (CFM, CMM)
• Protective twist cap for temperature/humidity sensor
• 8-Point Average for Air Velocity
• 60 Second Average for Air Volume
• Total Volume from multiple outlets
• Large LCD digital display
• Professional remote vane
• English/Metric scales
• Low battery indication
• Fast response
• Microprocessor circuitry for reliability
• Auto Power Off (can be disabled)

Specifications:

• Air Velocity
  • 1 to 114 FPS (0.3 to 35 MPS)
  • Accuracy: ±5%
  • Resolution: 0.1
• Air Volume
  • 0 to 99999 CFM (0 to 99999 m³/s)
  • Accuracy: ±5%
  • Resolution: 0.1(0 - 9999.9) or 1 (10000 - 99999)
• Temperature:
  • -4° to 140°F (-20° to 60°C)
  • Accuracy: ±1°F (±0.6°C)
  • Resolution: 0.1°F (0.1°C)
• Relative Humidity:
  • Range: 0 to 100% RH
  • Accuracy: ±3% at 10 to 60% RH ±5% at other range
  • Resolution: 0.1%
• Dew Point:
  • -90° to 158°F (-68° to 70°C)
  • Accuracy: ±3% at 10 to 60% RH ±5% at other range
  • Resolution : 0.1%
• Wet Bulb:
  • -7.6° to 158°F (-22° to 70°C)
  • Accuracy: ±3% at 10 to 60% RH ±5% at other ranges
  • Resolution : 0.1%
• Power: (1) 9V Alkaline battery or 9vDC with greater than 200mA adapter
• Dimensions:
  • Meter: 175 x 70 x 33 mm
  • Vane: 170 x 77 x 40 mm

Supplied with:

• Remote vane
• Battery
• User's manual
• Hard carrying case
• One year limited manufacturer's warranty
