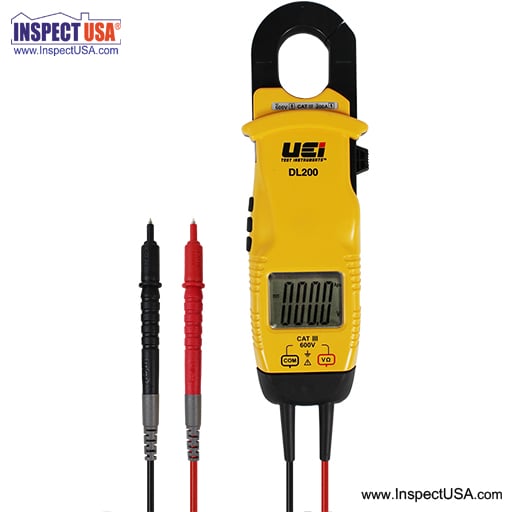

UEI Clamp Meter and Voltage Tester (DL200) with Leads & Case

UEI DL200 Clamp-on multi-meter and voltage tester. Supplied with test leads & Case.

The CATIII Clamp Meter and Voltage Tester is more than a clamp meter, more than a fork meter and more than a multimeter. With its unique sliding jaw clamp design, it can fit into tighter workspaces than normal clamp meters. Featuring ranges of 600V AC/DC, 200A AC, 2000 Ohms resistance and continuity, it is the new everyday meter.

• Operating Temperature: 32° F to 104° F (0° to 40° C).
  NOTE: most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 75% RH non-condensing.
• Operating Altitude: 6,562 feet (2,000 meters).
• Pollution Degree: 2.
• Display: 3 1/2" digits 2000 count.
• Refresh Rate: 3/seconds.
• Over-range: OL is displayed.
• Dimensions: 8.66" X 2.72" X 1.56".
• Weight: 11.9 oz
• CAT Rating: CATIII 600V.
• Certifications: cETLus 3rd Edition, CATIII 600V, CE Conformity, IP41, RoHS Compliant, 6' Drop Protection, IEC 61010-1 3rd Edition
• Battery Type: (2) AAA alkaline or equivalent.
• Minimum measurement AC mV: 500mV/DC mV:40mV.
• Response time (input; AC 100V): 1 sec
• Max displayed value: 660V AC/DC
• Input impedance: 10MΩ
• Frequency Range: sine wave: 45Hz to 400Hz
• Overload protection: 600V AC RMS or 600V DC
