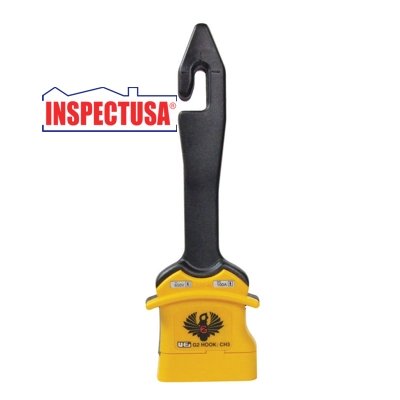

Clamp-On Multimeter: G2 Phoenix Adapter Hook (CH3) UEI DL Series

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The extended clamp head snaps onto the Phoenix meter body and allows measurements of #6 wire and smaller and currents up to 100 Amps AC (the highest amperage able to travel through a #6 wire). The Hook's patent pending technology significantly reduces the impact from current on adjacent wires by providing a virtual closed core inside the tip, which increases accuracy. The Worklight features isn't lost when exchanging the Phoenix base clamp head with The Hook, it also features a bright built-in Worklight, so wires inside dark enclosures are easy to see. The Hook works exclusively on the Phoenix Clamp Meter Series.

Features:

• Measures 100A AC
• Easily reaches into tight spaces
• Features a worklight for dark work spaces
• AC Amps Measurement: Jaw input (#6 wire or smaller)
• Range: 0 to 100A
• Resolution: 0.1A
• Accuracy: 2% ±20 digits
• Interference from adjacent wires: 0.03 to 1.0A
• Three year limited manufacturer's warranty

Download Users manual (PDF format)
