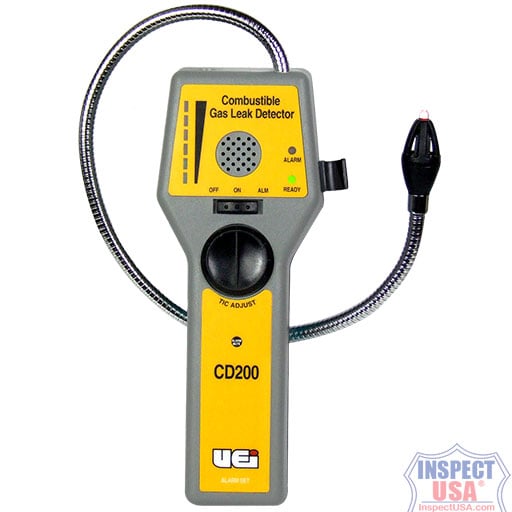

Combustible Gas Leak Detector (CD200) 18" Goose Neck, Tip Light

Combustible Gas Leak Detector (CD200) w/18 inch Goose Neck Sensor, Tip Light, Alarm & Hard Case

The CD200 Combustible Gas Leak Detector with an 18" Obedient & Flexible Goose Neck Sensor Probe, Tip Light, Alarm & Hard Case. The UEI CD200 has a long gooseneck probe and bright LED tip light to find combustible gas leaks in tight areas. Its adjustable alarm, easy one-hand operation and impact resistant storage case add up to value and convenience.

• Fully adjustable (thumb-wheel) steady tic rate accelerates as the sensor tip approaches a leak
• Tip light to illuminate area being tested
• Replaceable sensor
• Adjustable tick rate to locate leaks quickly
• Fast response time < 2 seconds to 40% LEL
• Long 18" gooseneck for hard to reach areas
• Visual leak detection by color-coded LED's
• Precision sensor detects even the smallest leaks
• Long, slim 18" gooseneck probe and bright LED tip light to find combustible gas leaks in tight areas
• Detects a wide variety of gases, including some toxic gases and nuisance vapors.
  The following represents only a portion of the more common gases it will detect:

Other gases include: Hydrogen Sulfide, Steam, Acetone Ammonia and even Smoke.

• User adjustable alarm preset levels
• Adjustable tick rate & visual detection LED
• Headphone jack (includes earphone)
• Low battery indicator

Specifications:

• Sensor: Solid state conductivity (semiconductor)
• Sensitivity: within 50ppm methane in air
• Probe length: 18" obedient gooseneck
• Warm up time: Approximately 60 seconds
• Response time: less than 2 seconds to 40% LEL methane in air stimulus
• Recovery time: less than 4 seconds recovering from 40% LEL methane in air
• Operating temperature: 32° to 120° F
• Operating humidity: 10 to 90% RH (non condensing)
• Power: (4) AA 1.5 volt alkaline batteries or 1.2 volt NiMH
• Dimensions: 8.75" x 3.25" x 2.5" (add approx 1" to height & width to account for coiled cable)
• Weight: 16oz (with batteries installed)

Supplied with:

• Sensor cap with lighted tip
• Carrying case with padding
• Instruction manual
• (4) AA alkaline batteries
• Miniature monaural earphone plug on 30" wire
• Three year limited manufacturers warranty (sensor excluded)

Download Owner's manual (PDF)

Replacement Sensor Tip for CD100A or CD200
Replacement Sensor Cap CD100A or CD200

Applications:

• Gas lines and pipes
• Heat Exchanger leaks
• Hazardous living/working environments
• Fuel in marine bilges
• Exhaust and fuel leaks
• Propane filling stations
• Check manholes for safety
