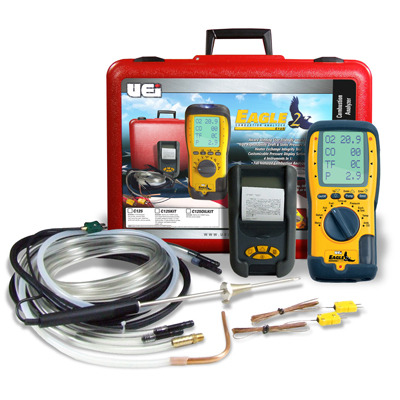

UEI Combustion Analyzer O2 CO2 & CO (C125KIT) Printer, Probe & Case

Reference only — not for sale

Model	C125KIT
Manufacturer	UEI
Category	Leak Detectors
Status	Discontinued

Browse all Leak Detectors Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The Eagle C125KIT Combustion Analyzers makes combustion analysis quick and accurate. Just turn the power on, select the fuel and go! The Eagle product line simplifies the complex efficiency process from basic combustion analysis to full system maintenance. Whether you're new to digital combustion analyzing or tired of scrolling through layers of navigation menus, the Eagle offers a quick start-up and a straightforward interface with a professional combination of features.

Built in sampling pump with battery saving standby switch
Measures: Flue temperature, differential flue temperature, oxygen, flue and ambient carbon monoxide (CO), and differential pressure
Calculates: Carbon dioxide, gross/net efficiency, excess air, CO air free
Integrated bright Worklight
Pre-programmed Fuels: Natural Gas, Light Oil, Propane, Butane and Liquefied Petroleum Gas
Heavy duty stainless steel probe with depth stop
Automatic calibration
Efficiency reading on condensing boilers
Infrared printer port
Back-lit Large 4 line LCD display
Unique DMM style rotary selector
Ruggedized boot with integral magnet
Real time clock
CO readings to 1 ppm
User programmable header
179 memory positions
User customizable parameters view
Can use alkaline or rechargeable NiMH batteries
Low battery indicator
Individual report printouts
Made in UK
Infrared Printer Features KMIRP2:
- Compact design with a protective rubber boot with integrated magnet
- Infrared port, receives readings up to 3' away without losing connection. Allowed 60° angle up to 18" away
- Compatibility with UEi analyzers and analyzers using HP protocols
- Self test and battery condition function
- Detects incorrect or missing information
- Automatic power down
- Paper advance
- Uses 4 x 1.5v alkaline AA batteries
- Battery life approx. 6000 print line of continuous printing

Specifications:

Flue temperature range*: 20° to 2400° F (-29° to 1315° C)
Net DELTA-T temperature range**: 20° to 2400° F (-29° to 1315° C)
Flue temperature & DELTA-T accuracy: ±0.3%
Inlet temperature range (ambient): 32 to 112° F (0 to 50° C)
Ambient temperature accuracy: ±0.3% reading + 1.8° F (+ 1° C)
Temperature resolution: 1° F/C
Oxygen O2 range*: 0 to 21%
Oxygen O2 resolution: ±0.2%
Oxygen O2 accuracy: 0.1%
Carbon Monoxide CO range*: 0 to 4000ppm
Carbon Monoxide CO resolution: 1ppm
Carbon Monoxide CO
Carbon Dioxide CO2 range**: 0 to 30%
Carbon Dioxide CO2 resolution: 1.0
Carbon Dioxide CO2 accuracy: ±0.3% reading
Efficiency range**: 0 to 99.9%
Efficiency resolution: 0.1%
Efficiency accuracy: ±1.0% reading
Excess Air range**: 0 to 250%
Excess Air resolution: 0.1%
Excess Air accuracy: ±0.2%
CO/CO2 range**: 0 to 0.999%
CO/CO2 resolution: 0.0001%
CO/CO2 accuracy: ±5% of reading
Pressure A (differential):
range: ±0.2mBar (0.08" WG)
resolution: 0.001mBar
accuracy: ±0.005mBar (±0.002"WG)
Pressure B (differential):
range: ±1.0mBar (0.4" WG)
resolution: 0.001mBar
accuracy: ±0.03mBar (±0.01"WG)
Pressure C (differential):
range: ±80mBar (32" WG)
resolution: 0.01mBar
accuracy: ±3% reading
Dimensions:
Handset: 7.9" x 1.8" x 3.5"
Probe: Length 11.8" x 0.25" diameter with 8" long stainless steel shaft
Neoprene Hose: 9' with 'K' type thermocouple
Power: (4) "AA" (designed for both alkaline or rechargeable Nickel Metal Hydride (NiMH) batteries)
Battery life: ~12 hours using (4) alkaline
AC adapter:
Input: AC 110v / 220v nominal
Output: DC 6v, 500mA
