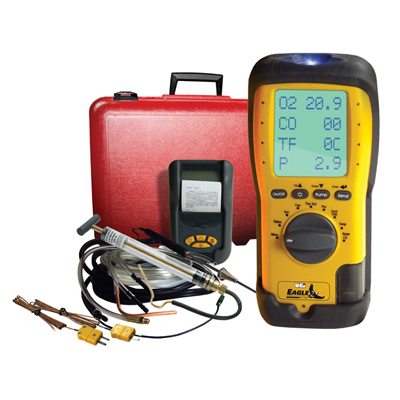

UEI Combustion Analyzer O2 CO2 & CO (C125OILKIT) Smoke Kit & Printer

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The C125OILKIT is an effective and affordable way to measure combustion efficiency when installing or maintaining oil-burning appliances. This kit combines the innovative and feature packed Eagle 2 (C125) Combustion Analyzer and the SPT1 Smoke Test Kit (determines efficient combustion from distillate fuels).

Features:

• Built in sampling pump with battery saving standby switch
• Measures: Flue temperature, differential flue temperature, oxygen, flue & ambient carbon monoxide (CO), and
• Calculates: Carbon dioxide, gross/net efficiency, excess air, CO air free
• Integrated bright Worklight
• Pre-programmed Fuels: Natural Gas, Light Oil, Propane, Butane and Liquefied Petroleum Gas
• Heavy duty stainless steel probe with depth stop
• Automatic calibration
• Efficiency reading on condensing boilers
• Infrared printer port
• Back-lit Large 4 line LCD display
• Unique DMM style rotary selector
• Ruggedized boot with integral magnet
• Real time clock
• CO readings to 1 ppm
• User programmable header
• 179 memory positions
• User customizable parameters view
• Can use alkaline or rechargeable NiMH batteries
• Low battery indicator
• Individual report printouts
• Made in UK
• Infrared Printer Features KMIRP2:
  • Compact design with a protective rubber boot with integrated magnet
  • Infrared port, receives readings up to 3' away without losing connection. Allowed 60° angle up to 18" away
  • Compatibility with UEi analyzers and analyzers using HP protocols
  • Self test and battery condition function
  • Detects incorrect or missing information
  • Automatic power down
  • Paper advance
  • Uses 4 x 1.5v alkaline AA batteries
  • Battery life approx 6000 print line of continuous printing

Supplied with:

• Eagle 2 (C125) Combustion Analyzer
• Infrared Thermal Printer (KMIRP2)
• Depth stop cone
• Flue Probe
• 9' Neoprene hose with incorporated K-type thermocouple end
• Ruggedized boot with integral magnet
• AC adapter (AACA4)
• Hard Case with protective foam interior (AC509)
• (1) roll of thermal printer paper (16646)
• Particle filter (17631)
• Quick start manual & owners guide (download PDF version-Approx 4mB)
• Three year limited warranty (2 year warranty on sensor)
