UEI Combustion Analyzer O2 CO2 & CO (C127KIT) Printer, Probe & Case

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

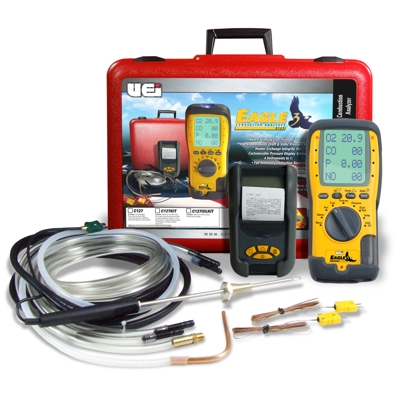

The UEI C127KIT comes complete with the Eagle 3 combustion analyzer, infrared printer, case & many other extras. Designed to offer advanced system analysis and productivity. This multi-functional instrument is a superior combustion analyzer with unmatched simplicity and a unique combination of features to enhance a technician's efficiency and safety. The Eagle 3 is perfect for combustion efficiency analysis but also doubles as a differential thermometer, differential manometer, and an ambient CO detector. Offers the same benefits of the Eagle 2 (C125) with the additional ability to measure Nitric Oxide (NOx). This allows technicians to work in commercial and light industrial applications measuring Nitric Oxide at 1ppm resolution.

• Measures flue temperature, oxygen, carbon monoxide CO, Differential, and differential pressure & Nitric Oxide NOx
• Calculates: Carbon dioxide CO2, gross/net efficiency, excess air, CO air free
• Built-in Worklight
• Unique DMM style rotary selector
• Protective boot with integral magnet
• Real time clock with date & time stamp
• CO readings to 1ppm
• Large 4 line back-lit display
• User programmable header
• 179 memory positions
• User customizable parameters view
• Individual report printouts
• Infrared printer port

Specifications:

Flue Temp Range:	20° to 2400°F (-29° to 1315°C)
Inlet Temp Range:	20° to 2400°F (-29° to 1315°C)
Inlet Temp Range (Ambient):	32° to 122°F (0° to 50°C)
Net Temp (DELTA T):**	20° to 2400°F (-29° to 1315°C)
Oxygen O2 :	0 to 21%
Carbon Monoxide CO:	0 to 2000ppm (4000 max 15 min)
Carbon Dioxide CO2:	0 to 30%
Efficiency:	0 to 99.9%
Excess Air:	0 to 250%
CO/CO2:	0 to 0.999%
Nitric Oxide NOx:	0 to 100ppm
Pressure (Differential)	Accuracy
±0.08" wc (±0.2mBar):	0.001mBar; ±0.005mBar; ±0.002"wc
±0.4" wc (±1mBar):	0.001mBar; ±0.03mBar; ±0.01"wc
±32" wc (±80mBar)	±3% reading
Pressure resolution:	0.001"wc < 9.999"wc 0.01"wc >10.00"wc 0.001mBar <24.999mBar 0.01mBar >25 mBar

* calculated ** measured

• Weight: 2.2lbs. with boot
• Handset: 7.9" x 1.8" x 3.5"
• Probe: 11.8" x 0.25" x 9.4" stainless steel shaft, K-type thermocouple (9' hose)
• Operating temperature range: 32° to 104°F (0° to 40°C)
• Operating humidity range: 10 to 90% RH non-condensing
• Power: 4 AA cells / 12 hour life typical with Alkaline AA cells
• Pre-Programmed Fuels: Natural Gas, Propane, Butane, LPG, Light Oil

Includes:

• C127 Analyzer
• Depth stop cone
• Flue Probe
  • Flue draft
  • Gas pressure
• 9' Neoprene hose
• Ruggedized boot with integral magnet
• Particle filter 17631
• Hard shell carrying case AC509
• Quick & Users start manual
• 3 year limited manufacturers warranty (2 year sensor warranty)
• Infrared Thermal Printer KMIRP2
• (1) roll of thermal printer paper 16646
• K-Type Temperature Probe
• Static Pressure Hose
• True Draft Probe
• Gas Tap and Hose
• (4) AA alkaline batteries
