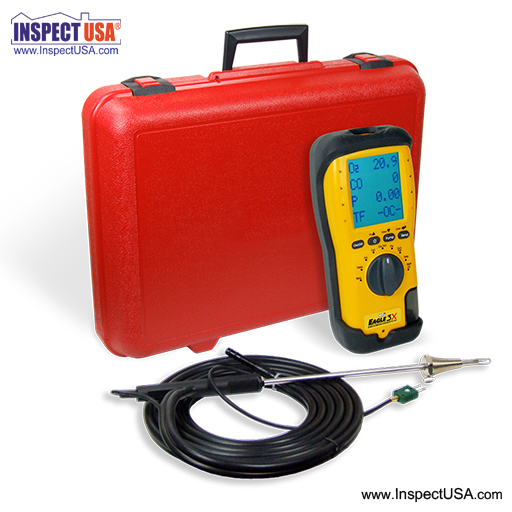

UEI Combustion Analyzer O2 CO2 NO1 & CO (C157) with Probe & Case

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The UEI C157 EAGLE 3X eXtended Life Combustion & System Analyzer with Case & Probe

The newly redesigned Eagle 3X Combustion System Analyzer eliminates the number one hassle for combustion contractors; the annual replacement and calibration of the O₂ sensor. By replacing the electro chemical O₂ sensor with the EOS Technology™ CO₂ sensor, the EAGLE 3X now takes direct CO₂ measurements and calculates the O₂ level. This lowers the cost of ownership by doing away with the annual replacements of the O₂ sensor and reducing calibration drifting typically found with standard electro-chemical sensors. The EOS Technology sensor is warranted for 5 years and has an unmatched industry-leading life expectancy of 10 years .

Features:

• Measures: Differential flue temperature, Carbon Dioxide CO₂, flue & ambient carbon monoxide CO, Nitric Oxide NOx & Hi-Res Differential Pressure
• Calculates: Oxygen O₂, gross/net efficiency, excess air, & CO air free
• High level CO alarm
• CO data logger
• Heat exchanger test
• Built-in Worklight
• Large 4 line backlit LCD display
• 179 memory positions
• User customizable parameters view
• Individual report printouts
• Unique DMM style rotary selector
• Protective boot with integral magnet
• Real time clock with date & time stamp
• CO readings to 1ppm
• Infrared printer port
• Battery level indicator
• Field replaceable sensors (USA only)
• Gas Zero (Fresh Air Zero) - Is a reset procedure to maintain accurate readings
  from the EOS sensor. This procedure compensates for any change in ambient
  conditions that may impact the readings.

Specifications:

Flue Temp Range:	20° to 2400°F (-29° to 1315°C)
Inlet Temp Range:	20° to 2400°F (-29° to 1315°C)
Inlet Temp Range (Ambient):	32° to 112°F (0° to 50°C)
Net Temp (DELTA-T):**	20° to 2400°F (-29° to 1315°C)
Oxygen O2:**	0 to 21%
Carbon Monoxide CO:*	0 to 2000ppm (4000 max 15 min)
Carbon Dioxide CO2:*	0 to 20%
Efficiency**:	0 to 99.9%
Excess Air**:	0 to 250%
CO/CO2:**	0 to 0.999%
Nitric Oxide NOx:	0 to 100ppm
Pressure (Differential)	Accuracy
±0.08" wc (±0.2mBar)	0.001mBar / ±0.005mBar ±0.002"wc
±0.4" wc (±1mBar)	0.001mBar / ±0.03mBar ±0.01"wc
±32" wc (±80mBar)	±3% reading
Pressure resolution:	0.001"wc < 9.999"wc 0.01"wc >10.00"wc 0.001mBar <24.999mBar 0.01mBar >25 mBar

• Weight: 2.2lbs. with boot
• Handset: 7.9" x 1.8" x 3.5"
• Probe: 11.8" x 0.25" x 9.4" stainless steel shaft, type K thermocouple (9' hose)
• Operating temperature range: 32° to 104°F (0° to 40°C)
• Operating humidity range: 10 to 90% RH non-condensing
• Power: 4 AA cells / 12 hour life typical with Alkaline AA cells
• Pre-Programmed Fuels: Natural Gas, Propane, Butane, LPG, Light and Heavy Oil, Bio-Fuel, Wood

Includes:

• C157 Analyzer
• Depth stop cone
• Flue Probe
  • Flue draft
  • Gas pressure
• 9' Neoprene hose with incorporated "k" type thermocouple end
• Ruggedized boot with integral magnet
• Particle filter 17631
• Hard shell carrying case AC509
• Quick & Users start manual
• (4) AA alkaline batteries
• 5 year limited manufacturers warranty (including sensor)
