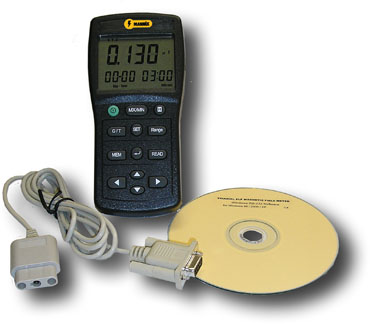

General 3-Axis EMF Electro-Magnetic Field Meter (EMF1394DL) Datalogger

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Triple Axis EMF Meter with Logging Software & USB Interface Cable

• Uses three internal sensors to test a wide range of ELF magnetic fields, independent of measurement angle
• Unit is designed to provide user a quick, reliable and easy way to measure magnetic field radiation levels around power lines, appliances and industrial devices
• Cost effective, handheld instrument, designed and calibrated to measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz
• Displays micro Tesla and milli Gauss in the same tester
• Easel back ABS housing
• Data hold
• Min / Max hold
• Data memory and Read functions

Specifications:

• Display: Triple LCD display
• Range:
  • 20/200/2000 milla Gauss
  • 2/20/200 micro Tesla
• Resolution:
  • 0.01/0.1/1 milli Gauss
  • 0.001/0.010/0.1 milla Tesla
• Accuracy:
  • 20mG/2µT ± (3% + 3d) at 50Hz
  • ± (3% + 3d) at 50Hz or 60Hz
  • ± (5% + 3d) at 40Hz to 200Hz
  • -3dB at 30Hz to 2000Hz
• Number of Axis: Triple axis (x,y,z)
• Bandwidth: 30Hz to 2000Hz
• Operating humidity: below 80% RH (non condensing)
• Storage condition: 14° to 140° F (-10° to 60° C)
• Operating temperature: 32° to 122° F (-10° to 50° C)
• Over-Input: Display shows "OL"
• Memory: 2000 data sets (manual or continued monitoring)
• Sampling Time: approx 0.5 second
• Power: (6) 1.5V "AAA" alkaline batteries
• Battery Life: approximately 100 hours
• Auto Power Off: Approximately 15 minutes (can be disabled)
• Dimensions: 154 x 72 x 35mm
• Weight: approximately 6 ounces

Supplied With:

• RS-232 to USB
• Windows 95/98/NT/2000/ME/XP compatible software for downloading readings to a PC
• 6 "AAA" Batteries
• Operating instructions
• 1 year limited manufacturer's warranty
