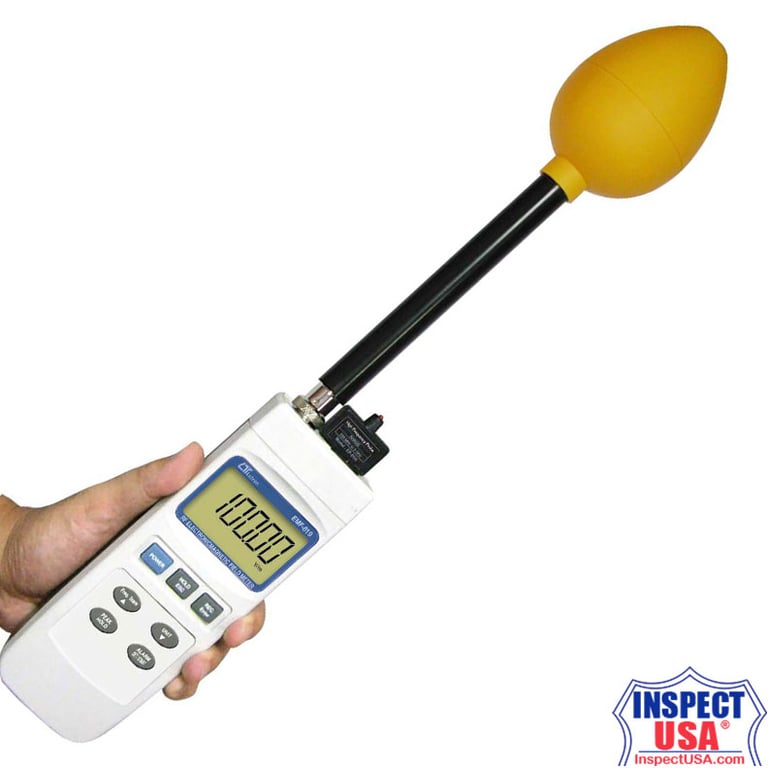

3 Axis RF Radiation EMF Meter (EMF-819) 50 MHz to 3 GHz

Lutron 3 Axis EMF Radio Frequency Radiation Meter. Model EMF-819.

The EMF-819 is a 3-axis RF electromagnetic field meter designed for measuring radio frequency (RF) radiation strength across a broad frequency range of 50 MHz to 3 GHz. Equipped with a high-frequency probe, it provides precise electromagnetic field (EMF) readings in units of V/m, W/m², and mW/cm². The meter features an alarm setting function, data hold, peak hold, and an RS232 interface for data transfer, making it ideal for monitoring EMF exposure from cell towers, radar, microwave ovens, and other RF sources.

Features

• 3-axis probe for accurate RF electromagnetic field measurement.
• Wide frequency range: 50 MHz to 3 GHz.
• Measures electromagnetic field strength in V/m, W/m², and mW/cm².
• High-frequency probe (EP-05H) included for broadband RF monitoring.
• Alarm setting function to alert users when exposure exceeds preset levels.
• Peak hold function to capture the highest measured value.
• Data hold function to freeze the display reading.
• Large LCD with contrast adjustment for optimal viewing.
• Auto power-off feature to save battery life.
• RS232 interface for data logging and computer connectivity.
• Includes a hard carrying case for portability.

General Specifications

• Display: LCD, 58 mm x 34 mm.
• Measurement units: V/m, W/m², mW/cm².
• Accuracy: < 2 dB.
• Probe structure: 3-axis semiconductor sensor.
• Frequency team selection: Normal and 2.45 GHz.
• Data output: RS232 PC serial interface.
• Sampling time: Approx. 1 second.
• Operating temperature: 0 to 50℃ (32 to 122℉).
• Operating humidity: Less than 80% RH.
• Power: (1) 9v battery or 9 volt DC Adapter AP-9V110.
• Power consumption: Approx. DC 5.95 mA.

Dimensions and Weight

• Meter: 7.8" x 2.9" x 1.8" (200x76x37mm).
• Probe: 2.8" diameter x 9.4" (70 mm diameter x 240 mm length).
• Weight: 425 g (0.94 lbs).

Electrical Specifications (23 ± 5℃)

• Field Strength Measurement:
  • Range: 0 to 200.00 V/m, resolution 0.01 V/m, effective value > 1 V/m.
  • Range: 0 to 99.999 W/m², resolution 0.001 W/m², effective value > 0.03 W/m².
  • Range: 0 to 9.9999 mW/cm², resolution 0.0001 mW/cm², effective value > 0.0003 mW/cm².
• Frequency Range: 50 MHz to 3 GHz.
• Accuracy: within 2 dB.

Supplied with:

• Hard carrying case
• Instruction manual
• EP-05H probe
• Data card for EP-05H probe.
• DC 9V power adapter

Optional accessories:

• Data acquisition software, SW-U801-WIN.
• USB cable, USB-01.

APPLICATIONS:

This meter is specially developed for measuring or monitoring electromagnetic fields. For example: cell-phone station, hospital equipment, radar, microwave oven, radiation work, TV antenna, Radio station, welding equipment, baking-equipment, television, computer, factory, laboratory etc.
