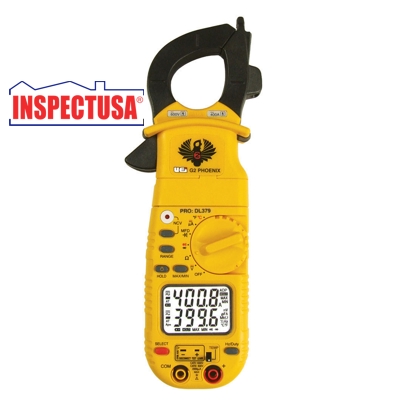

Digital UEI Clamp-On Multimeter (DL379) with Probes & Case

Reference only — not for sale

Model	DL379
Manufacturer	UEI
Category	Clamp Meters
Status	Discontinued

Browse all Clamp Meters Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Digital UEI Clamp-On MultiMeter (DL379) with Probes & Case

Features

Detachable clamp head (can be interchanged with the optional current hook adapter CH3)
Measures:
- Non-Contact Voltage & Temperature (K type port)
- AC, DC or µA
- Resistance; Frequency; Continuity
- Diode tester
- Capacitance; Duty Cycle (%)
Auto ranging measurement with manual ranging (Amps or adapters only) capability
MIN / MAX (peak hold) all ranges except frequency
Incorporated bright Worklight
Dual large LCD display with backlight
Auto power off with manual override wit low battery indicator
µA (DC or AC) for Flame Safeguard Measurement
Built-in test lead storage & magnetic mount
uL listed

Specifications:

RANGE	Resolution	Accuracy	Overload Protection
AC amps measurement (45Hz to 400Hz): Jaw Input
40A	0.01A	2.9% +15 digits	400A
400A	0.1A	1.9% +8 digits	400A
AC low amps measurement (45Hz to 400Hz): Test Lead Input
400µA	0.01µA	2.0% +5 digits	2000µA/600rms
2000µA	0.1µA	1.5% +5 digits	2000µA/600rms
DC low amps measurement: Test Lead Input
400µA	0.01µA	1.2% +3 digits	2000µA/600rms
2000µA	0.1µA	1.2% +3 digits	2000µA/600rms
DC volts measurement:
400mV	0.1mV	0.5% +4 digits	1000Vrms
4V	1mV
40V	10mV
400V	100mV
1000V	1V	.80% +10 digits
AC volts measurement (45Hz to 400Hz):
400mV	0.1mV	2.0% +4 digits	750Vrms
4V	1mV
40V	10mV
400V	100mV
750V	1V
Ohms measurement:
400Ω	100mΩ	1.0% +4 digits	600Vrms
4kΩ	1Ω
40kΩ	10Ω
400kΩ	100Ω
4MΩ	1kΩ
40MΩ	10kΩ	2.0% +4 digits
Capacitance measurement:
40nF	0.01nF	3.5% +6 digits	600Vrms
400nF	0.1nF
4nF	0.001nF
40nF	0.01nF
400nF	0.1nF
4000nF	1nF
Frequency measurement:
99.99kHz	10Hz
9.99Hz	0.001Hz	0.1% +4 digits	600Vrms
99.99Hz	0.01Hz
999.9Hz	0.1Hz
9.999kHz	1Hz
999.9kHz	100Hz

Temperature measurement:
-22° to 14° F	0.1° C/F	±5.4° F (±3° C)	30Vrms
-15° to 752° F	0.1° C/F	±1% +3.6° F (±1% +2° C)	30Vrms

Diode test:
- Range: 2.0V
- Open circuit voltage: ≤3.0V DC
- Test current (typical): 0.25mA
- Overload protection: 600V
Duty Cycle (%) measurement:
- Range: 0.1 to 99.9%
- Accuracy: ±(0.2 per kHz +01% +4 digits
- Overload protection: 600V
Continuity measurement:
- Open circuit voltage ≤2.7V: threshold ≤30Ω approximately
- Overload protection: 600V
Power: (2) AA batteries
Operating temperature: 32° to 113° F
Storage temperature: 32° to 140° F
Storage & operating humidity range: 0 to 80%
Weight: 11.3 oz
