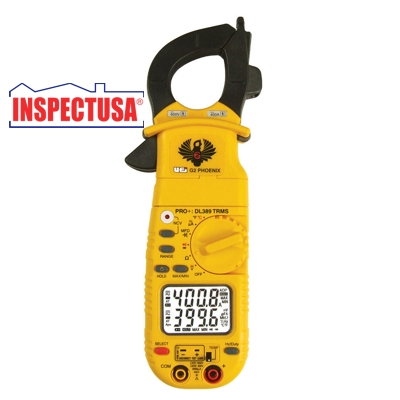

Digital UEI Clamp-On Multimeter (DL389) with Probes & Case

Model #: DL389

UPC: 053533505757

Condition: New

This item is No Longer Available

No Longer Available
Product 23 of 23
Digital UEI Clamp-On MultiMeter (DL389) with Probes & Case

Features

  • True RMS
  • Detachable clamp head (can be interchanged with the optional current hook adapter CH3)
  • Measures:
    • Non-Contact Voltage & Temperature (K type port)
    • AC, DC or µA
    • Resistance; Frequency; Continuity
    • Diode tester
    • Capacitance; Duty Cycle (%)
  • Auto ranging measurement with manual ranging (Amps or adapters only) capability
  • MIN / MAX (peak hold) all ranges except frequency
  • Incorporated bright Worklight
  • Dual large LCD display with backlight
  • Auto power off with manual override wit low battery indicator
  • Microamp (DC or AC) for Flame Safeguard Measurement
  • Built-in test lead storage & magnetic mount
  • uL listed

Specifications:

RANGE Resolution Accuracy Overload Protection

AC amps measurement (45Hz to 400Hz): Jaw Input

40A 0.01A 2.9% +15 digits 400A
400A 0.1A 1.9% +8 digits

AC low amps measurement (45Hz to 400Hz): Test Lead Input

400µA 0.01µA 2.0% +5 digits 2000µA/600rms
2000µA 0.1µA 1.5% +5 digits
DC low amps measurement: Test Lead Input
400µA 0.01µA 1.2% +3 digits 2000µA/600rms
2000µA 0.1µA

DC volts measurement:

400mV 0.1mV 0.5% +4 digits 1000Vrms
4V 1mV
40V 10mV
400V 100mV
1000V 1V .80% +10 digits

AC volts measurement (45Hz to 400Hz):

400mV 0.1mV 2.0% +4 digits 750Vrms
4V 1mV
40V 10mV
400V 100mV
750V 1V

Ohms measurement:

400Ω 100mΩ 1.0% +4 digits 600Vrms
4kΩ 1Ω
40kΩ 10Ω
400kΩ 100Ω
4MΩ 1kΩ
40MΩ 10kΩ 2.0% +4 digits

Capacitance measurement:

40nF 0.01nF 3.5% +6 digits 600Vrms
400nF 0.1nF
4nF 0.001nF
40nF 0.01nF
400nF 0.1nF
4000nF 1nF
Frequency measurement:
99.99kHz 10Hz
9.99Hz 0.001Hz 0.1% +4 digits 600Vrms
99.99Hz 0.01Hz
999.9Hz 0.1Hz
9.999kHz 1Hz
999.9kHz 100Hz
Temperature measurement:
-22° to 14° F 0.1° C/F ±5.4° F (±3° C) 30Vrms
-15° to 752° F ±1% +3.6° F (±1% +2° C)
  • Diode test:
    • Range: 2.0V
    • Open circuit voltage: ≤3.0V DC
    • Test current (typical): 0.25mA
    • Overload protection: 600V
  • Duty Cycle (%) measurement:
    • Range: 0.1 to 99.9%
    • Accuracy: ±(0.2 per kHz +01% +4 digits
    • Overload protection: 600V
  • Continuity measurement:
    • Open circuit voltage ≤2.7V: threshold ≤30Ω approximately
    • Overload protection: 600V
  • Power: (2) AA batteries
  • Operating temperature: 32° to 113° F
  • Storage temperature: 32° to 140° F
  • Storage & operating humidity range: 0 to 80%
  • Weight: 11.3 oz

Supplied with:

  • Soft padded carrying case with zipper & belt loop
  • Test leads with needle probes with alligator clip adapters
  • Batteries & operating instructions
  • K type temperature probe
  • Three year limited manufacturer's warranty

Download Users manual (PDF format)
