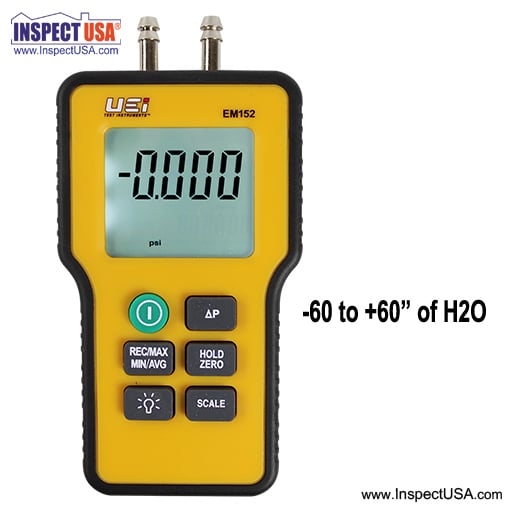

Dual Port Manometer 60 Inches WC (EM152) with Case

UEI EM152 Dual Port Digital Manometer measures from -60 to +60 inches of Water Column. Supplied with 2 pieces of silicone tubing, carrying case, battery and brass fittings.

• Dual input differential in 11 scales
  • inches of H2O, psi, bar, mBar, kPa, inches of HG, mm HG, ozin, feet of H2O, cm H2O and kgcm
• Hold/Min/Max/Avg
• Record with elapsed time stamp
• Pressure zero
• Backlit display
• Relative time clock
• Low battery indicator
• Auto power off
• Magnetic mount

Specifications:

• Accuracy: within 3% of reading

Supplied with

• (2) 18" lengths fo flexible transparent silicone tubing 1/4" diameter
• (2) 3/8" brass fittings (BF100)
• 9v alkaline battery
• Soft pouch (7.48" x 4.33" x 1.96")
• Manual

Applications

• Validate pressures in accordance with equipment manufacturer’s specification for optimal system efficiency and safety
• Measure draft, gas supply, manifold or burner pressures
• Dual input offers users the ability to measure pressure drops across heat exchangers, cooling coils, supply and return registers and filters
