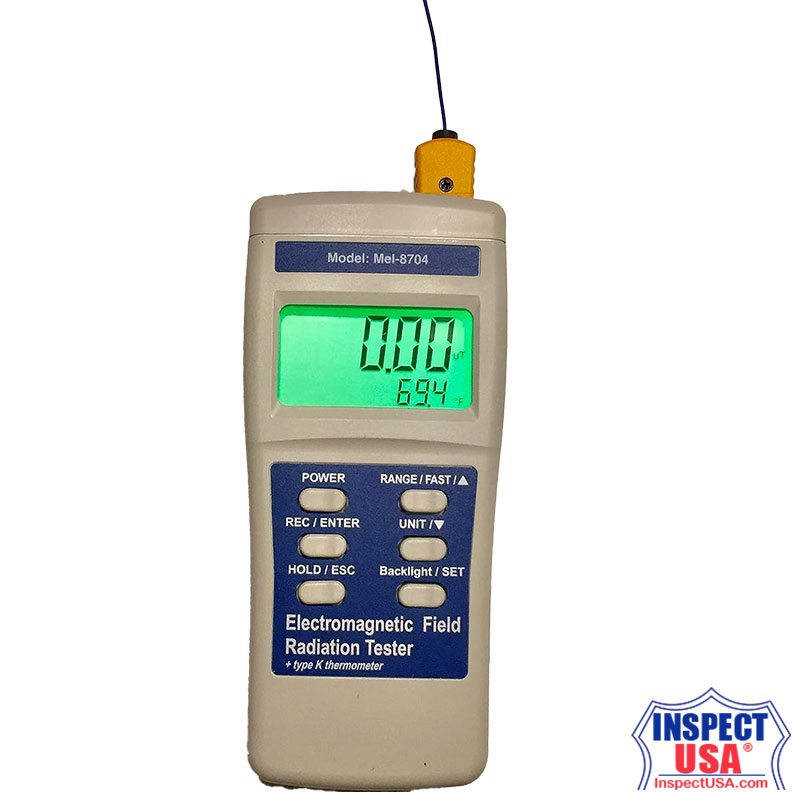

Electro-Magnetic Field Meter 200 to 20,000 milliGauss (MEL8704) LCD

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The Mel Meter Model 8704 was specifically designed for Paranormal Investigators. Many important features have been incorporated into this durable, precision hand held instrument.

• Single axis sensor
• Backlight display has a dual purpose. It can be turned On or OFF manually for display viewing in dark areas, and it is also bright enough so that it can be used in total darkness to navigate stairwells, corridors and door ways
• Illumination of objects up to 8' away is possible with this special display once your eyes become adjusted to the light
• The large, clear display shows EMF & Ambient Temperature simultaneously to provide the user with a direct correlation between EMF and Temperature change in the surrounding area
• Measures EMF & Temperature "Cold Spots" Simultaneously
• This display can be viewed up to 15' away when positioned using the table top tilt stand or tripod mount. No more fumbling for a flashlight to see the display in the dark
• "Smart Calibration" function that allows the user to Calibrate the instrument in the field
• Record feature captures Min & Max values
• Data hold function
• Accepts K-Type temperature probes
• Auto power off

Specifications:

• Measurement range: 200, 2000, 20,000 milliGauss (20, 200, 2000 uTesla)
• Accuracy: ±4% at 50-60 Hz
• ELF bandwidth: 30 to 300 Hz
• Temperature range: -328° to to 2498° F (-200° to 1370° C)
• Resolution: 0.1° F/C
• Sampling time: approximately 1 second
• Operating temperature range: 32° to 122°F (0 to 50°C)
• Operating humidity range: <80% RH
• Power source: (1) 9v battery or optional 9vDC (1 amp max) power adapter
• Power consumption: approximately 3mA DC
• Weight: 0.55 lb (250 g)
• Dimensions: 6" x 2.7" x 1.4" (15.2 x 0.69 x 3.63cm)

Supplied with:

• K-Type thermocouple probe
• User's manual
• One year limited manufacturer's warranty
