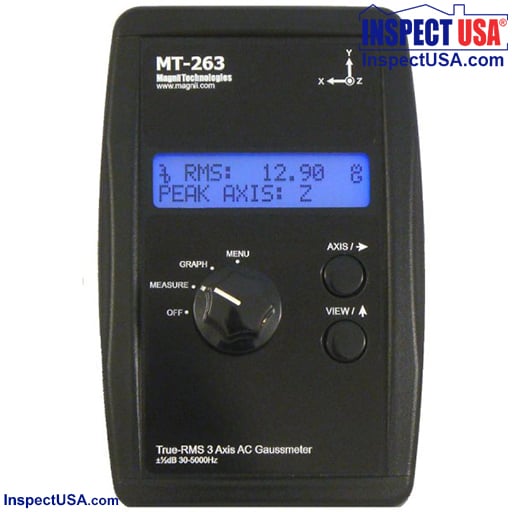

EMF Meter Digital True-RMS Triple Axis AC Gauss meter (MT263)

EMF Meter Digital True-RMS Triple Axis AC Gauss meter (MT263)

Features:

• True-RMS triple axis digital AC Gaussmeter
• Accurately measure AC magnetic fields regardless of meter orientation.
• Measurement Range: Auto-ranging 0.01 to 250.0 mG
• The highest resolution setting possible will automatically be picked based on the waveform and amplitude.
• Wide Bandwidth: 15 to 5,500 Hz, covering the entire SLF (Super Low Frequency) and ULF (Ultra Low Frequency) bands and part of the VLF (Very Low Frequency) spectrum.
• True RMS meter accurately measures any waveform, not just sine waves
• Utilizes an advanced microprocessor to calculate the True RMS (root-mean-square) magnetic field values detected by three orthogonal inductive sensors. This ensures accurate measurements of any waveform – square, triangle, sine, or even “dirty” sine waves from power lines.
• Bargraph Display: Displays a graph of the current field strength.
• Max Hold: Display the max value of the field strength measured.
• Peak Axis Detection: See which axis has the strongest field strength, making it easy to find the source of the field.
• Switchable axis (X, Y or Z)
• Innovative Peak-Axis feature tells you which axis has the highest field strength.  Great for tracking down the source of a field.

  • Powerline Field Measurements
  • Appliance Measurements
  • Lab Testing & Calibration
  • AFILS System Testing for IEC/EN 60118-4
• Selectable units: milliGauss or microTesla
• External power jack to run unit with optional AC power adapter
• Low battery indication
• Made in the USA

Specifications:

• Range: 0 to 250 mG (auto-ranging)
• Accuracy: ±(4% + 4 digits) from 48 to 62 Hertz
• Flat frequency response:
  • ±0.5dB at 30 to 5000 Hz
  • -3.0dB at 15 and 5500 Hz
• Highest resolution: 0.01 mG
• Display: Blue LED backlight with variable brightness (9 settings)
• Refresh rate: 2.5 times per second
• Power: (1) 9v alkaline battery (included)
• Battery life: approximately 15 hours of continuous use
• Dimensions: 5.5" x 3.6" x 1.75"
• Weight (without battery): 7.2 oz

Supplied with:

• Instruction manual
• (1) 9v alkaline battery
• 1 year limited manufacturer's warranty

• download instruction manual (pdf format)
• download accuracy test results (pdf format)
