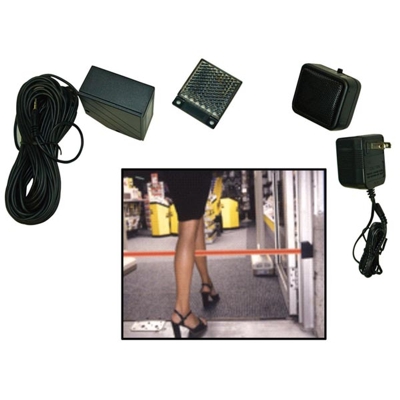

Entry Exit Alarm (PEM7D) IR Photoelectric Beam

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

• easy to install
• adjustable timer & volume
• applications:
  • entry detection
  • automatic alarm warning
  • present detection
• includes:
  • 1 x retro-reflection IR photoelectric beam sensor
  • 1 x power supply 230V / 9V DC / 200mA
  • 1 x alarm speaker (timer & volume adjustable)
• optional counter for PEM7D: PEM7D-C

Specifications:

• nominal detection range: 23ft
• light source: IR LED
• speaker:
  • power supply: DC 9V
  • speaker output: chime / off / alarm (selection through by switch)
  • duration audio signal: about 1 sec. for chime, 30 sec. for alarm
  • timer adjustable: 3 - 30sec. before alarm activation
  • volume adjustable: yes (from 0 to max)
• working temperature: -4°F to +122°F
• power supply: DC 9-15V regulated (adapter included)
• total current consumption: < 100mA
• standby current: 25mA
• IP rating: IP44

Download Users Manual (PDF format)
