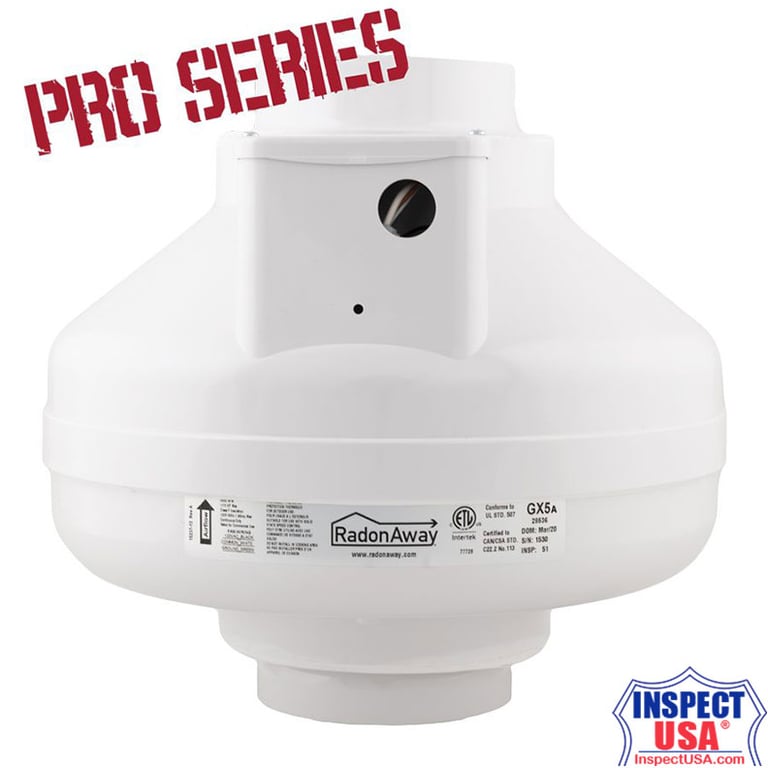

RadonAway Pro-Series 4" Radon Fan (GX5a) Inline VOC Mitigation Fan

GX5a Pro Series 4" Hi-Performance Inline VOC Mitigation Radon Fan

The GX5a Pro Series, is manufactured with two new technologies, Eternalast and Vapor Tite. The Eternalast polycarbonate plastic fan housings were developed and built to our specifications for increased durability and to prevent discoloration. The Vapor Tite sealing technology is an induction welding process that fuses the engineered grooves/joints together. The housing is permanently bonded together, inhibiting radon and soil gas leakage. The Pro Series inline radon fans are covered by a 5-year limited warranty and are rated for commercial or residential use. ETL listed by Intertek to UL507 and CSA C22.2 Standards. Made in the USA with U.S. and imported parts.

• Revolutionary patent pending design.
• Eternalast polycarbonate plastic housing.
• Water-hardened thermally-protected motor.
• Optimal for moderate to tight soils.
• 4" duct for use with 3" or 4" Pipe.
• Quiet operation.
• Rated for indoor and outdoor use.
• Rated for commercial or residential use.
• Vapor Tite technology to inhibit radon and soil gas leakage.
• ETL listed by Intertek to UL507 and CSA C22.2 Standards.

Specifications:

• Inlet/Outlet: 4.5" OD (4.0" PVC Schedule 40 size compatible).
• Typical CFM vs Static Pressure:
  • 174 CFM at less than 0.1 water column inches.
  • 150 CFM at 1.0 water column inches.
  • 121 CFM at 2.0 water column inches.
  • 87 CFM at 3.0 water column inches.
  • 50 CFM at 4.0 water column inches.
  • 8 CFM at 5.0 water column inches.
• Maximum Recommended Operation Pressure* (Sea Level**): 5.0" W.C.
  *Reduce by 10% for High Temperature Operation.
  **Reduce by 4% per 1000 feet of altitude.
• Power: 110-120vAC 60 Hz
• Power consumption: 77 to 133 watts.
• 5 year limited manufacturers warranty.
• Dimensions:
  • Height (H): 11.1".
  • Diameter (D): 11.9".
  • Duct size (d) outside diameter: 4.5" (4.0" PVC Schedule 40 size compatible).
