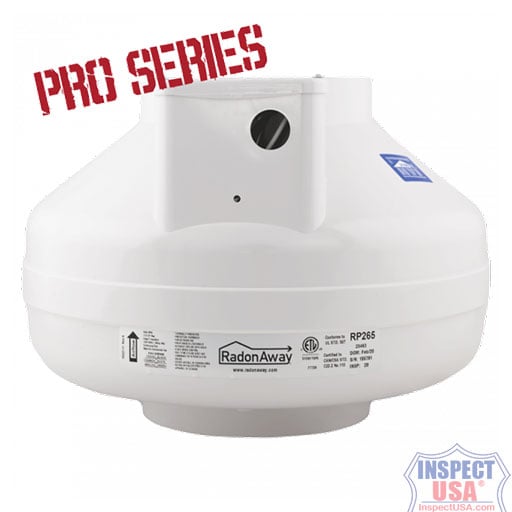

RadonAway Pro-Series 6" Radon Fan (RP265) Inline VOC Mitigation Fan
The RP265 Pro Series fan installs white and stays white. It has a 6" duct and is chosen most often by radon professionals when there is a need for quiet efficiency coupled with more power and higher air flow. Made in the USA with U.S. and imported parts.
The RP265 has been designed for radon mitigation and is our most popular radon mitigation fan. RadonAway's RP Series fans, are engineered to provide superior performance and are ultra-quiet, as well as energy efficient. RP fans are ideal for most active soil depressurization (ASD) radon mitigation systems.
Replacement for: Fantech R160, F160, FR160, R175, F175, FR175, HP220; AMG Legend; Kanalflakt K4; and Rosenberg R150
- Made in USA
- Energy efficient with very quiet operation
- Continuous Duty; Class B Insulation; Thermally protected
- Water-hardened motorized impeller for water resistance
- Mounts on duct pipe or with optional mounting bracket (25007-2)
- Compact 11.75" overall diameter with a rugged 0.125" Noryl plastic housing
- Rated for Indoor / Outdoor and Residential / Commercial use
- ETL Safety Agency Listed - tested to uL Standards 507
- Meets all electrical code requirements ECR
- PVC Schedule 40 size compatible
- Power: 110-120vAC 60 Hz; 3000 RPM
- Storage temperature range: 32° to 100°F
- Operating temperature range: -20° to 120°F
- Maximum inlet air temperature: 80°F
- Weight: 5.5 lbs
- 5 year limited manufacturers warranty
| Model |
P/N |
Energy Star Rated |
Fan Duct Diameter |
Watts |
Max Pressure "WC |
0" |
.5" |
1.0" |
1.5" |
2.0" |
| RP140 |
28460 |
Yes |
4" |
17-21 |
0.7 |
138 |
66 |
- |
- |
- |
| RP145 |
28461 |
- |
4" |
34-66 |
1.8 |
169 |
124 |
81 |
42 |
4 |
| RP260 |
28462 |
Yes |
6" |
47-65 |
1.3 |
251 |
157 |
70 |
- |
- |
| RP265 |
28463 |
- |
6" |
96-136 |
2.3 |
375 |
282 |
204 |
140 |
70 |
| RP380 |
28464 |
- |
8" |
90-145 |
2.0 |
541 |
461 |
268 |
235 |
107 |
| Fan Model |
Dimensions |
| A |
B |
C Duct Size |
| RP140 |
9.7" |
8.5" |
4" |
| RP145 |
9.7" |
8.5" |
4" |
| RP260 |
11.75" |
8.6" |
6" |
| RP265 |
11.75" |
8.6" |
6" |
| RP380 |
13.41" |
10.53" |
8" |
Download Fan Installation Instructions.
RadonAway Fan Replacement (Cross Reference) Guide.
