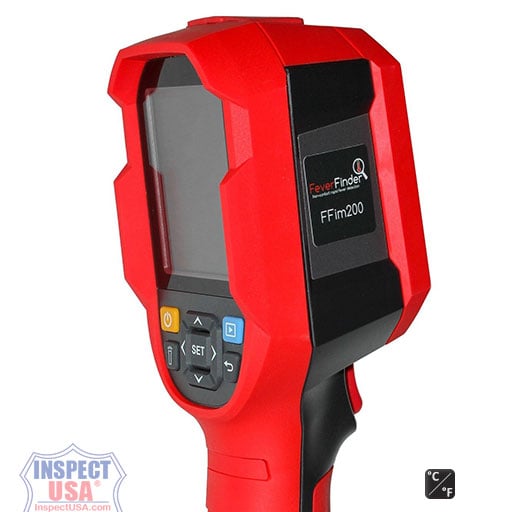

FeverFinder Body Temperature Thermal Camera (FFim200) Non-Contact

Model #: FFim200

UPC: 8719326877310

Condition: New

Regular Price: $899.95 $677.00

Add Qty to Cart:
Product 18 of 19

FeverFinder FFim200 Non-Contact Rapid Fever Detection with Fever Alarm & Real Time Streaming

Body Temperature Thermal Imaging Camera is an infrared thermal imager that combines surface temperature measurement with real-time thermal images and is calibrated to measure human body temperatures. The FFim200 can be directly connected to a PC for real-time image transmission on a large screen.

  • Temperature range: 86° to 113°F (30° to 45°C).
  • Measurement resolution: 0.2°F (0.1°C).
  • Accuracy: within 0.9°F at 77°F ambient temperature (0.5°C at 25°C ambient temperature).
  • Optimal measuring distance: 39" (1 meter).
  • Minimum measuring distance: 5.9" (15cm).
  • Response time: approximately 500ms.
  • Power: high capacity Li-ion 3.7v (5000mAh) 26650battery.
  • Battery life: approximately 6 hours on a single charge.
  • Battery charging time: approximately 4 hours.
  • Auto power off: Selectable (5min, 10min, 30min), 30min auto power off (default).
  • IR resolution 19,200 pixels (160 x 120).
  • Pixel size: 12µm.

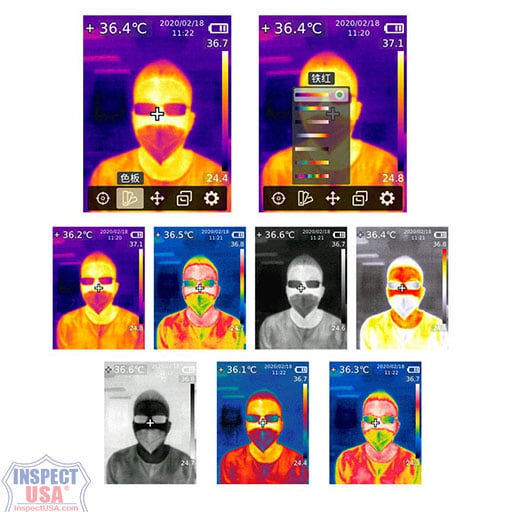

  • Color palette: Iron Red, Rainbow, White Hot, Red Hot, Ice Blue.
  • Infrared spectral band: 8 to 14µm.
  • Field of view (FOV): 56° (H) x 42° (V).
  • Spatial resolution (IFOV): 11mRAD.
  • Thermal sensitivity (NETD): less than 50mK.
  • Sensor: UFPA (uncooled infrared focal panel arrays).
  • Frame rate: less than 9Hz.
  • Image format: BMP. .
  • Internal storage: micro SD card.
  • Brass tripod mounting hole 1/4" thread.
  • Rubberized casing for comfort and shock absorption.
  • IP65 Waterproof and 78" (2M) drop resistant.
  • Certifications:
    • CE (EN 61326-1:2013, EN 61326-2-2:2013,EN 61326-2-3).
    • RoHS.
  • Cross Reference: Model number 165K.
  • Dimensions: 9.3" x 3" x 3.4" (236x75.5x86mm).
  • Weight (in carton): 4.8 pounds (2.2kG).

Supplied with:

  • Users manual.
  • 16gB Micro SD Card.
  • USB-C Cable.

Download Users Manual Download Users Manual (PDF format).

NOTE: This product is not a medical device. It is not intended or designed to be used for diagnosis, prevention, monitoring, treatment or alleviation of disease. FeverFinder and its dealers, partners and suppliers will not be responsible or liable for any special, indirect, incidental or subsequent damage or loss caused by using this device.

This thermal imager camera is often used in paranormal investigations.
