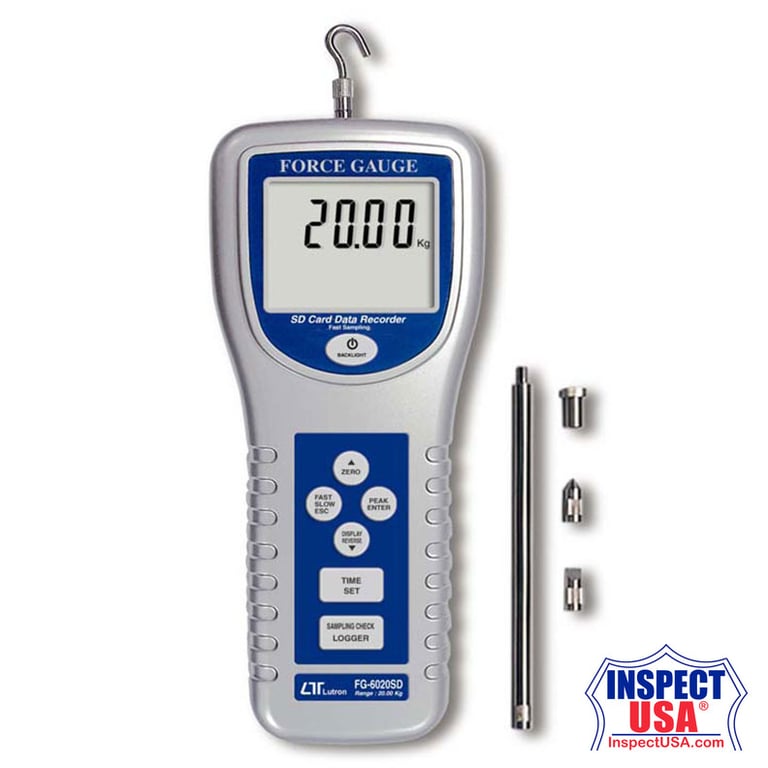

Force Gauge Tension & Compression 20Kg (FG-6020SD) w/Case

The FG-6020SD 20kG Force Gauge provides accurate and reliable force measurements with real-time data logging, making it an essential tool for various industrial applications.

• Dual Recording Modes: Offers both Normal and Peak Hold data record modes, allowing flexible measurement and recording options.
• Real-Time Data Logging: Built-in SD card real-time data recorder with a minimum sampling time of 10 ms, storing data along with timestamp information for detailed analysis.
• High Accuracy and Resolution: Measures force up to 20 Kg with a high resolution of 0.01 Kg, ensuring precise and reliable results.
• Comprehensive Display and Interface: Features a large LCD display with backlight for easy reading and provides RS232/USB interfaces for seamless data transfer.
• Versatile Measurement Units: Supports three measurement units (Kg, lb, Newton) and offers both tension and compression capabilities, accommodating various testing needs.

Specifications:

• Display:
  • Type: LCD (Liquid Crystal Display).
  • Digits: 5 digits, 16 mm (0.63") digit size.
  • Backlight: Yes.
  • Display Direction: Selectable positive or reverse
• Measurement Modes:
  • Normal Mode: Sampling time set from 1 second to 8 hours
  • Peak Hold Mode: Sampling time set from 10 ms to 500 ms
• Measurement Range and Resolution:
  • 20.00 Kg - Resolution: 0.01.
  • 44.10 lb - Resolution: 0.01.
  • 196.12 Newton - Resolution: 0.02.
• Accuracy: within (0.5% + 2 digits), when temperature is between 18 and 28° C.
• Minimum value: 0.02 Kg, 0.07 lb, 0.3 Newton.
• Update Time:
  • Fast: Approx. 0.2 second
  • Slow: Approx. 0.6 second
• Data Logging:
• Memory Capacity: 1 GB to 16 GB SD memory card
• Data File Format: Excel-compatible, no extra software required
• Power Supply:
• Batteries: DC 1.5V (UM3, AA) x 6 PCs
• Adapter: DC 9V (optional AC/DC adapter)
• Power Consumption:
• Normal Operation: Approx. DC 7 mA
• Data Saving and LCD Backlight Off: Approx. DC 38 mA
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 85% RH non-condensing.
• Dimensions: 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inches)
• Weight: 650 g (1.43 lb) with batteries

Accessories Included:

• Operating Manual.
• Flat-Head Adapter.
• Hook Adapter.
• Cone Head Adapter.
• Chisel Head Adapter.
• 120 mm Extension Rod.
• Carrying Case.

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• Test stand, Model: FS-1001.
• Wedge grip, Model: WG-01.
• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
• RS232 Cable UPCB-02.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• Excel Data Acquisition Software SW-E802.

Advanced Features:

• Microprocessor Circuit: Ensures high accuracy and provides special functions and features.
• Auto Power Off: Manages power consumption effectively.
• Data Hold Function: Freezes the display value for convenient data recording.
• Overload Indicator: Displays ---- when in over-range status.
• Full Capacity Zero Control: Allows zeroing of the gauge at full capacity.
