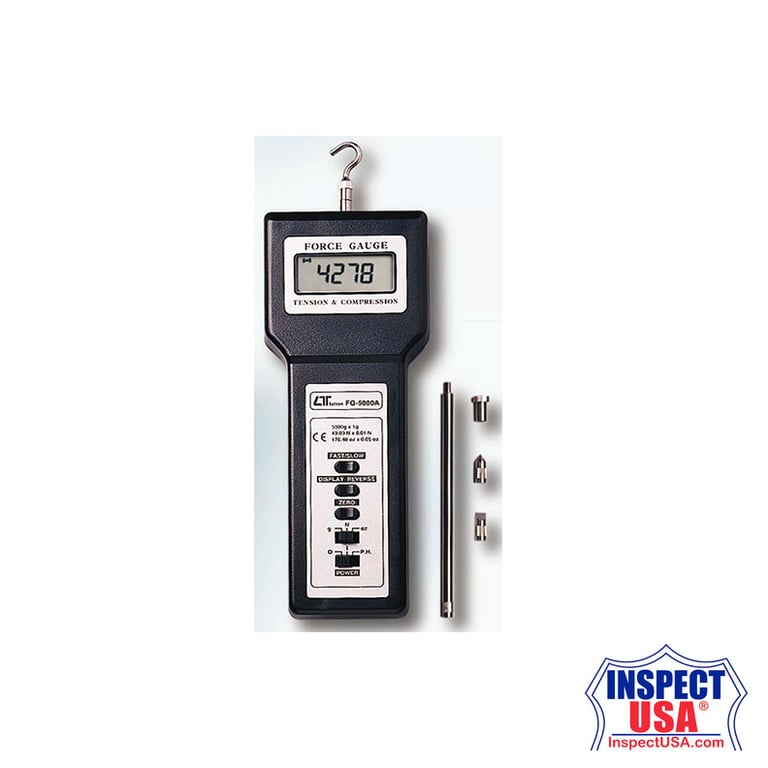

Force Gauge Tension & Compression 5 Kg (FG-5000A) with Case

Lutron Force Gauge Tension & Compression Gauge 0 to 5 Kg. Model number FG-5000A is supplied with a storage case.

Hand held or with optional stand mount.

• 5,000 Grams, 5 KG capacity, high resolution, accuracy & repeatability.
• Display in grams, Newtons or ounces.
• Tension & compression capability .
• Peak hold ( Max. load ).
• Zero button.
• Full capacity zero (tare) control.
• Fast/Slow response time push button.
• Positive or reverse direction selectability.
• Microprocessor circuit & exclusive load cell transducer.
• Over load protection.

Specifications:

• Update rate (approximate):
  • Fast 0.2 seconds.
  • Slow 0.6 seconds.
• Full scale deflection 2.00 mm
• Power supply: six 1.5V AA (UM-3) batteries or DC adapter (not included).
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Dimensions: 8.9 x 3.3 x 1.5” (227 x 83 x 39 mm)
• Weight: 1.4 lbs (551 g) with batteries installed.

Supplied With:

• Operation manual.
• Flat-head adapter.
• Hook adapter.
• Cone head adapter.
• Chisel head adapter.
• 120 mm extension rod.
• Carrying case.

Optional Accessories:

• Test stand, Model: FS-1001
• Wedge grip, Model: WG-01
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
