Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

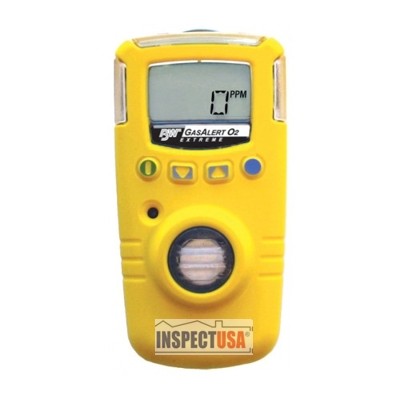

Gas Alert Extreme Oxygen Detector (GAXT-X-DL) 0-30% O2 Sensor

Reference only — not for sale

Model	GAXT-X-DL
Manufacturer	Honeywell
Category	Leak Detectors
Status	Discontinued

Browse all Leak Detectors Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The rugged, compact and affordable GasAlert Extreme single gas detector offers reliability and ease of use with large, real-time readings and a range of user-settable options. Equipped with a field-replaceable sensor and long-life battery, the GasAlert Extreme is suitable for a wide range of applications.

Single gas detection of Oxygen O₂ - Range: 0 to 30.0%
Includes Datalogging now standard on all GasAlert Extreme detectors
Direct, real-time readings on large LCD
Operates through consecutive shifts; exceptional battery run-time
Durable ergonomic design with built-in concussion-proof boot
Field-settable user options are tamper-proof with pass-code protection
Low, High, STEL (short-term exposure limit) and TWA (time-weighted average) alarms, with adjustable set-points
Multi-language support in English, French, German, Spanish and Portuguese
Compatible with Sampler motorized sampling pump
MicroDock II compatible for automated calibration, testing and record keeping
Operating temperature range: -4 degrees to 122 degrees F
Operating humidity range: 0 to 99% RH, non condensing
Simple auto-zero and calibration
Audible, visual and vibrating alarms
Audible Alarm/Indicators: Two levels
- High-output, pulsing 95 dB at 1 foot
- Periodic confidence beep every 5 seconds (field selectable on/off)
Vibrating Alarm: Vibrates in sync with audible and visual alarms
Visual alarm: 4 High-intensity red LEDs, plus alarm LCD readout
Self checks for sensor, battery and circuitry integrity
Water and dust-resistant IP66/67 rating
Built-in concussion-proof boot (ruggedized)
Plug-in easy to replace sensor
LCD shows real-time gas concentration
Ultra-clear backlit display
UL, cUL, ATEX, IECEx approvals
Compact and affordable
Event Logging: Records and transmits up to 10 gas alarm events. Event information: gas type, peak exposure level (%volume); alarm duration in minutes and seconds; time elapsed since the alarm occurred in days, hours and minutes. Transmission method: via infrared port to USB PC adapter.
Intrinsic Safety Approvals: UL, cUL; ATEX, IECEx
Power: 3v replaceable lithium battery
Battery life: approximately two years of continuous operation
Dimensions: 1.1" x 2" x 3.75" (28 x 50 x 95mm)
Weight: 2.9 oz. (82 grams)
Warranty: 2 year including sensor
