Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

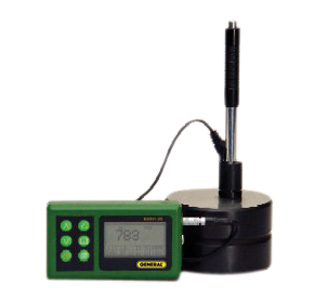

Hardness Gauge: Digital Portable Ultrasonic Tester (UTEMHT20)

Reference only — not for sale

Model	UTEMHT20
Manufacturer	General Tools
Category	Specialty Meters
Status	Discontinued

Browse all Specialty Meters Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Hardness Gauge: Digital Portable Ultrasonic Tester

Quick and reliable
Wide measuring range in Hi value and direct display of converted hardness values in Rockwell HRB, HRC, Vickers HV, Brinell HB and Shore HS
For most metals
Impact device provides testing at any angle, even upside down
1250 readings memory with data output
Date and time display
Low-High settings
High accuracy ± 0.5%
Hardness parameter HL, HRC, HRB, HV, HB, HS
Display dimensions: 5” x 2.5 128 x 64 LCD
Display functions: Hardness scale, hardness value, times, average indicator and average value, impact direction, type of impact device connected, memory
reference, date, time, battery power consumption
Accuracy: Within ± 0.5% (or HLD=800)
Memory: 1250 groups Output: RS232 interface
Overall dimensions: 4.25” x 2.5” x 1” (108 x 62 x 25mm)
Weight: 6.4 oz 180 gr including impact device and printer
Conforms to ASTM A 956
