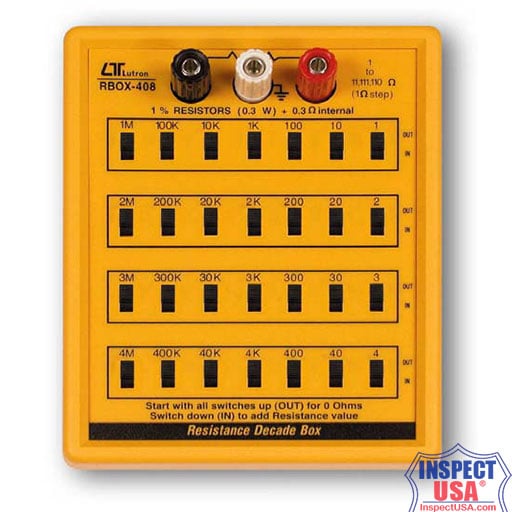

Lutron Resistance Decade Box (RBOX-408) 7 Resistance Decades

Lutron Resistance Decade Box (RBOX-408) 7 Resistance Decades

* Pocket size, offering accurate, reliable performance.

* 1 to 11,111,110 ohm, wide range and high resolution ( 1 ohm per step ), practical and versatile tools.

*With seven decades of resistance.

* Slide switches that allow the user to simply add or subtract for desired value.

* Terminals with multi way binding posts, one to switch shield case.

* ABS plastic housing case, rugged components.

• Range: 1 to 11,111, 110 ohm ( 1 ohm per step ).
• Accuracy: 1% resistors used throughout.
• Wattage: 0.3 Watts.
• Internal Stray Resistance: 0.3 ohm max.
• Operating Temperature: 0 to 50 degrees C.
• Operating Humidity: Less than 80% RH.
• Weight 320 g.
• Dimensions: 5.79" x 4.61" x 2.16" (14.7x11.7x5.5cm).
