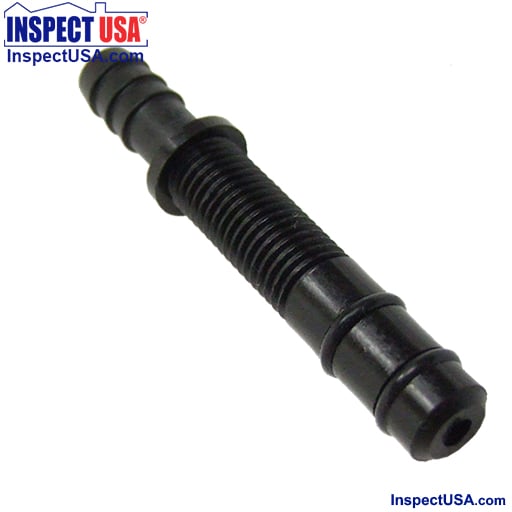

Inlet Tube Connector (SM11103) for C Series Analyzers

Inlet Tube Connector (SM11103) for C Series Analyzers

Works with C20, C30, C50, C75, CO91, CO95, C85, C125, C127, C155, C157, C255, C257, C165.

• 1 end is 5/16" diameter with (2) fitted o-rings. 1 3/8" to end of threads x 19/32" diameter. Threaded area is approximately 11/16" of thread.
• Other end is a barbed fitting for 1/4" ID tubing, approximately 5/8" of barb.
• Overall length: 2".
• Inside diameter: 7/64".
