Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

Inspection Kit Clamp Meter, IR & Circuit Tester (HVACKIT) w/Case

Reference only — not for sale

Model	HVACKIT
Manufacturer	UEI
Category	Inspection Supplies
Status	Discontinued

Browse all Inspection Supplies Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

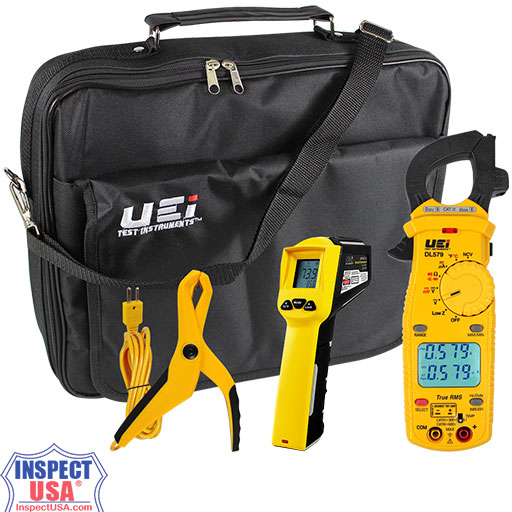

UEI HVAC Clamp Meter Kit (HVACKIT) with Infrared Thermometer & Case

The HVACKIT combines the most commonly used test instruments in a convenient foam lined carrying case, protecting the instruments while keeping them readily available for testing needs.

Kit includes: DL579 Digital Clamp-On Meter, INF165c Infrared Thermometer, ATTPC4 and a padded AC73 Soft Carrying Case.

DL579 Digital Clamp-On Meter

The DL579 is a True-RMS HVAC/R clamp meter. It has functions like AC/DC voltage, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle. It includes test leads, a pair of alligator clips, thermocouples, a zippered pouch, and is backed by a 1-Year warranty.

Measures:

Non-Contact Voltage & Temperature (K type port)
AC, DC or µA
Resistance; Frequency; Continuity
Diode tester
Capacitance; Duty Cycle (%)
Auto ranging measurement with manual ranging (Amps or adapters only) capability
MIN / MAX (peak hold) all ranges except frequency
Incorporated bright Worklight
Dual large LCD display with backlight
Auto power off with manual override wit low battery indicator
Microamp (DC or AC) for Flame Safeguard Measurement
Built-in test lead storage & magnetic mount

INF165c Infrared Thermometer

10:1 Distance to Spot Ratio
Extended Temperature Range (-58° to 750°F)
Over-molded handle with comfort grip
Maximum value capture
Hold button
Auto power off
Low Battery indicator
Holster type carrying Case
°F / °C switchable
Specifications:
- IR temperature range: -58° to 750°F
- IR temperature resolution: 0.1°F
- IR temperature accuracy: ±2% of reading or 4°F (whichever is greater)
- Emissivity: 0.95 fixed
- Operating temperature: 32° to 122°F
- Response time: 1 second
- Distance to spot ratio: 10:1
- Power: (2) "AAA" alkaline batteries
- Battery life: Approx 140 hours
- Dimensions: 6.9" x 1.5" x 2.8"
