Skywatch Wind Warning System JDC WWS Kit3

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

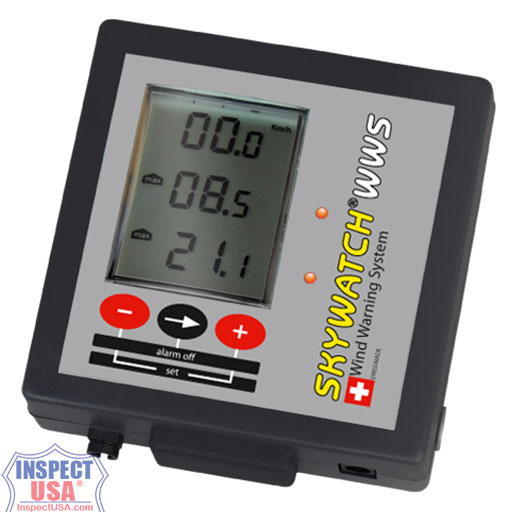

JDC Skywatch Wind Warning System WWS Kit3

The Skywatch Wind Warning System (WWS) was developed for protecting people and property that may be subject to strong winds such as scaffoldings, cranes, schools, sports arenas, campings sites, mobile homes, marinas, airfields, ski lifts, sports competitions, and more. The WWS consists of 2 parts:

• A display unit that shows the wind speed with 4 programmable warning thresholds (2 min and 2 max).
• A multidirectional turbine (wind sensor) enabling measurement of the wind in the horizontal plane and in the vertical as well (turbulence behind objects). The turbine sends its signal magnetically to a transducer located at the end of the cable connected to the display.

Supplied with:

• Display unit.
• 15m cable.
• Propeller with wind sensor.
• Wind sensor mounting bracket.
• Four values can trigger an alarm. These values can be set to trigger on the rising edge as well as falling edge and the alarm duration is also configurable for every alarm.
• Kit 3: has an external alarm interface with 4 relays that can be assigned to the different alarms
• Waterproof case for the display unit.
• External power supply.

The Skywatch WWS operates from two AA batteries (sufficient for over 2 years without replacement) and equally well from an external supply of 6 to 30 VDC (cigar lighter socket, mains power etc.). When an AC-DC adapter is connected, the batteries are disconnected. If the power fails, the batteries automatically take over.

Specifications:

• Units: km/h, mph, m/s, fps and knots.
• Resolution: 0.1 unit.
• Measuring cycle: each second.
• Accuracy: ± 3 % if horizontally (Windsens3D).
• Measuring range: from 5 to 150 km/h.
• Alarms: 2 min, 2 max.
