Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

Lutron 3,000A Flexible Current Probe (CP-3001)

Reference only — not for sale

Model	CP-3001
Manufacturer	Lutron Instruments
Category	Meter Accessories
Status	Discontinued

Browse all Meter Accessories Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

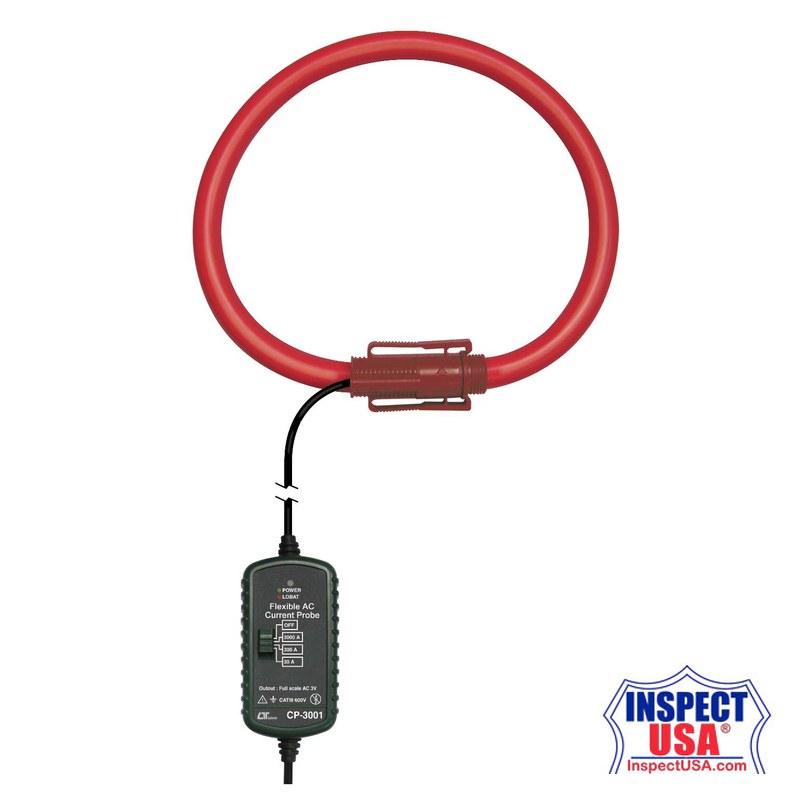

Lutron 3,000A Flexible Current Probe (CP-3001)

CP-3001 an cooperate any kinds multimeters ( ACmV meters ).

Features:

Ranges : 30 A/300 A/3000 A, ACA.
Output voltage : 3 ACV at full scale.
Flexible probe length : 600 mm ( 23.6 inch ).
Optional current probe for DW-6092, DW-6093, DW-6095.
When change the new probe, the calibration procedures are not necessary to be executed.
Signal output use the banana plugs, durable and safety.
CP-3001 can cooperate with any kinds of multimeters ( ACmV meters ) which are built-in the ACV mV measurement range, then can be used as the AC 3000 Amps ( max. ) current meter.

Link to the technical data sheet that is provided for this Lutron Meter
