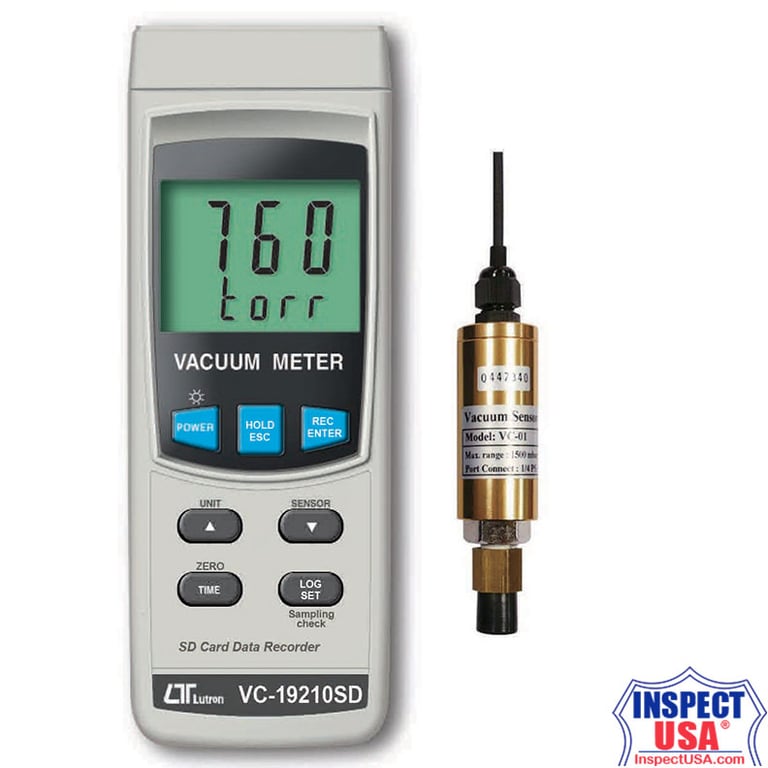

Lutron Absolute Vacuum Pressure Meter (VC-19210SD) 1500mBar

Lutron Absolute Vacuum Pressure Meter (VC-19210SD) Measures from 1 to 1500mBar

Specifications

• SD card real time data recorder
• Model: VC-19210SD ISO-9001, CE, IEC1010
• Port connect: 1/4" PS.
• Sensor probe size: 4.8" x 1.2" diameter (74mm x 30 mm diameter).
• Sampling time: Approx. 0.8 seconds.

Features

• Absolute vacuum & absolute pressure measurement
• Wide measure range from 1 to 1500 mbar
• Overload protection up to 2000 mbar max
• Separate probe, easy operation
• Applications: Automobile, Industrial, Laboratory, Heating, Ventilation, Medical Hospital
• Heavy duty sensor used for air, oil gas, liquid
• 7 display units: torr, mm Hg, mbar, KPa, hPa, inch Hg, psi (selectable by push button)
• Microprocessor circuit ensures maximum accuracy with special functions and features
• Real time SD memory card Datalogger, with built-in Clock and Calendar
• Sampling time can be set from 1 second to 8 hours 59 minutes 59 seconds
• Manual datalogger available with different location settings (position 1 to 99)
• Easy operation: No extra software needed for setup
• Data saved to SD card can be read directly into Excel
• SD card capacity: 1 GB to 16 GB
• LCD with green backlight for easy reading
• Auto power off or manual power off selectable
• Data hold and max/min reading recall
• Microcomputer circuit for high accuracy
• Powered by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter
• RS232/USB PC computer interface

General Specifications

• Circuit: Custom one-chip microprocessor LSI circuit
• Display: 52 mm x 38 mm LCD with green backlight (ON/OFF)
• Display units: 7 kinds - torr, mm Hg, mbar, KPa, hPa, inch Hg, psi
• Zero adjustment: Push button on the front panel
• Span adjustment: Push button gain adjustment for precise calibration
• Datalogger: Auto sampling from 1 second to 8 hours 59 minutes 59 seconds

Manual Datalogger

• Manual datalogger function available
• Push the datalogger button to save data once
• Set sampling time to 0 seconds for continuous logging
• Selectable location numbers from 1 to 99

Memory Card

• SD memory card: 1 GB to 16 GB capacity

Advanced Settings

• Set clock time (Year/Month/Date, Hour/Minute/Second)
• Set sampling time
• Auto power OFF management
• Set beep sound ON/OFF
• Decimal point of SD card setting

Electrical Specifications (23 ± 5 ℃)

• Max. range: 1500 mbar
• Resolution: 1 mbar
• Accuracy: ± 1% Full Scale
• Other units:
  • KPa: 150.0 KPa, Resolution: 0.1 KPa
  • hPa: 1500 hPa, Resolution: 1 hPa
  • torr: 1125 torr, Resolution: 1 torr
  • mm Hg: 1125 mm Hg, Resolution: 1 mm Hg
  • inch Hg: 44.30 inch Hg, Resolution: 0.02 inch Hg
  • psi: 21.75 psi, Resolution: 0.01 psi

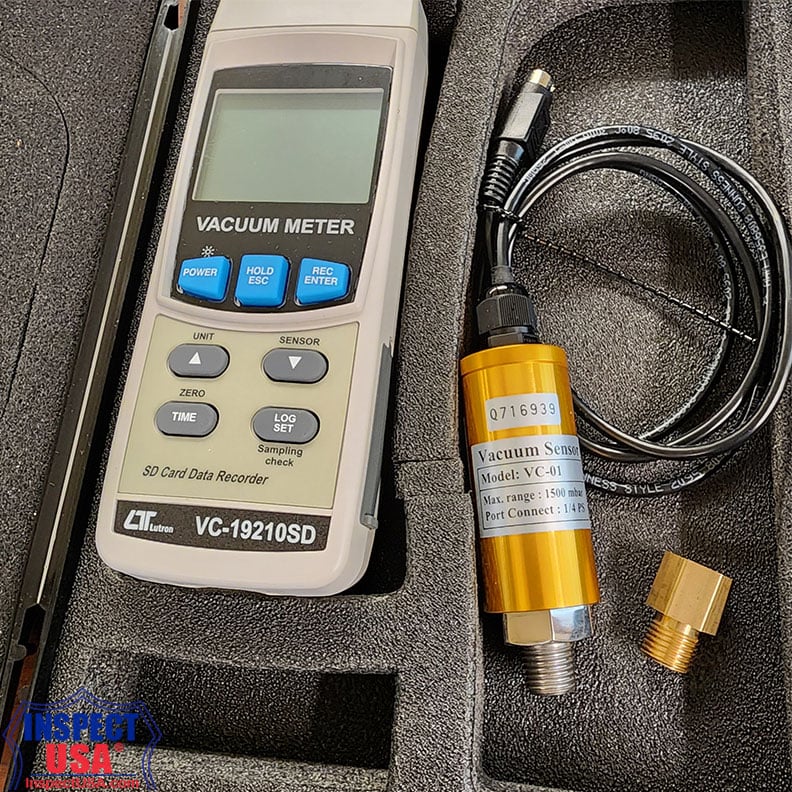

Accessories Included

• Instruction manual: 1 PC

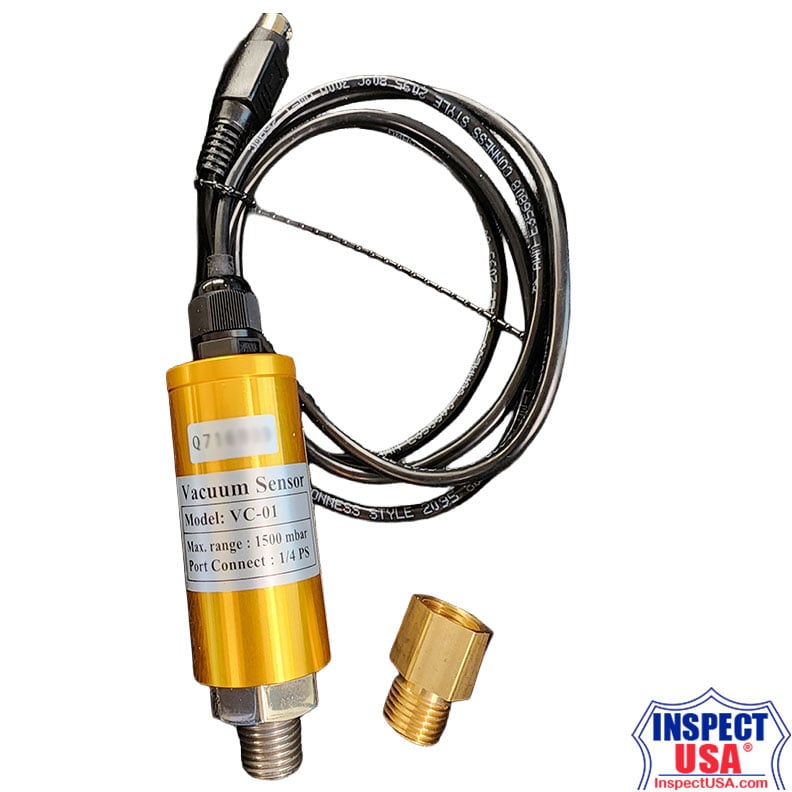

• Vacuum sensor probe: 1 PC
• Hard carrying case (CA-06): 1 PC
• Brass adapter connector (converts 1/4" PS to 1/4" NPT).

Optional Accessories

• Soft carrying case (CA-05A)
• SD memory card
• AC to DC 9V adapter
• USB cable (USB-01)
• RS232 cable (UPCB-02)
• Data acquisition software (SW-U801-WIN)
