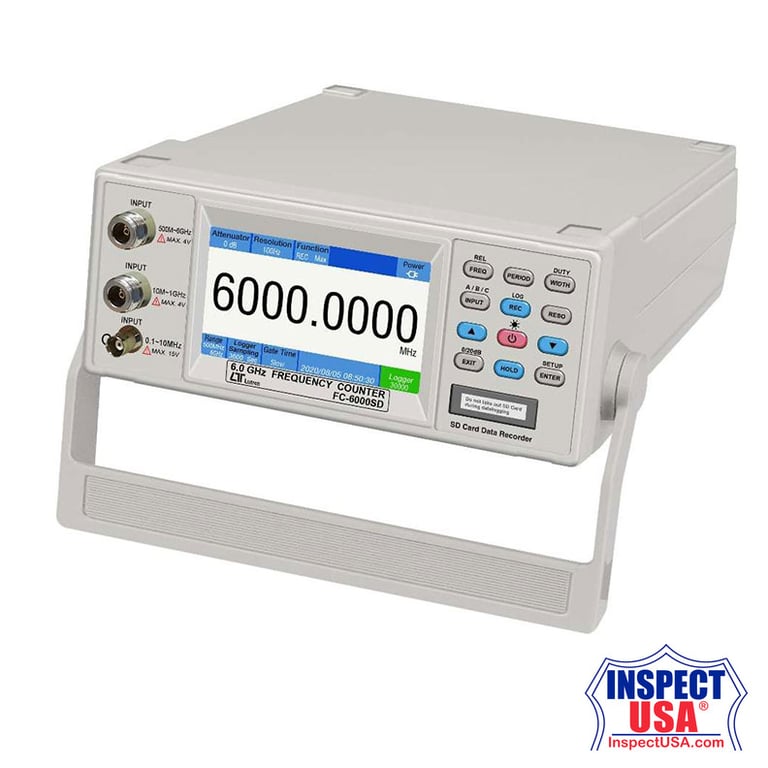

Lutron Benchtop Frequency Counter (FC-6000SD) 6gHz with TCXO (Temperature Compensated Crystal Oscillator)
A frequency counter is an electronic instrument used to measure the frequency of a periodic signal, typically expressed in hertz (Hz). The device counts the number of oscillations or pulses of the signal that occur within a specific time interval (usually one second), allowing it to determine the signal's frequency. Frequency counters are widely used in various fields, including telecommunications, radio, electronics, and physics, for testing and measuring the performance of devices like oscillators, transmitters, and frequency synthesizers.
The FC-6000SD Frequency Counter is a versatile and highly accurate instrument, designed for a wide range of frequency measurements. Equipped with advanced features like TCXO (temperature compensated crystal oscillator) and micro SD card data logging, it is ideal for demanding applications in various industries.
1. Wide Frequency Range: Measures frequencies up to 6.0 GHz, making it suitable for VHF, UHF, and other high-frequency applications.
2. TCXO for High Stability: The temperature compensated crystal oscillator ensures high stability and accuracy in frequency measurements.
3. Comprehensive Data Logging: Supports micro SD card data logging, with options for auto and manual recording. Data can be easily transferred to a computer for further analysis.
4. Multi-Function Measurement: Capable of measuring frequency, period, clock width, duty cycle, and more, with features like data hold, relative measurement, and memory recall for maximum, minimum, and average readings.
5. User-Friendly Interface: Features a 4.3" TFT LCD display for clear and easy-to-read measurements, even in bright environments.
6. Versatile Power Options: Operates on six 1.5V AA batteries or an optional AC to DC 9V adapter for extended use.
Technical Specifications:
- Frequency Range:
- 950 MHz to 6 GHz (Input A)
- 10 MHz to 1 GHz (Input B)
- 10 Hz to 10 MHz (Input C)
- Resolution: Varies by gate time; as low as 0.1 Hz for 6 GHz range.
- Sensitivity:
- 6 GHz: ≤ 30 mVrms (950 MHz to 6 GHz)
- 1 GHz: ≤ 30 mVrms (10 MHz to 1 GHz)
- 10 MHz & Period: ≤ 15 mVrms
- Time Base Stability: 1 PPM (-20 to 70℃)
- Display: 4.3" TFT LCD, 480 x 272 dots
- Data Output: RS232/USB interface for computer connectivity.
- Power Supply: Six 1.5V AA batteries or optional AC to DC 9V adapter.
- Dimensions: 295 x 236 x 98 mm (11.6 x 9.3 x 3.9 inches)
- Weight: 1465 g (3.23 lb) without battery.
Versatile Applications:
Ideal for use in laboratories, communications, electronics manufacturing, and any application requiring precise frequency measurements.
