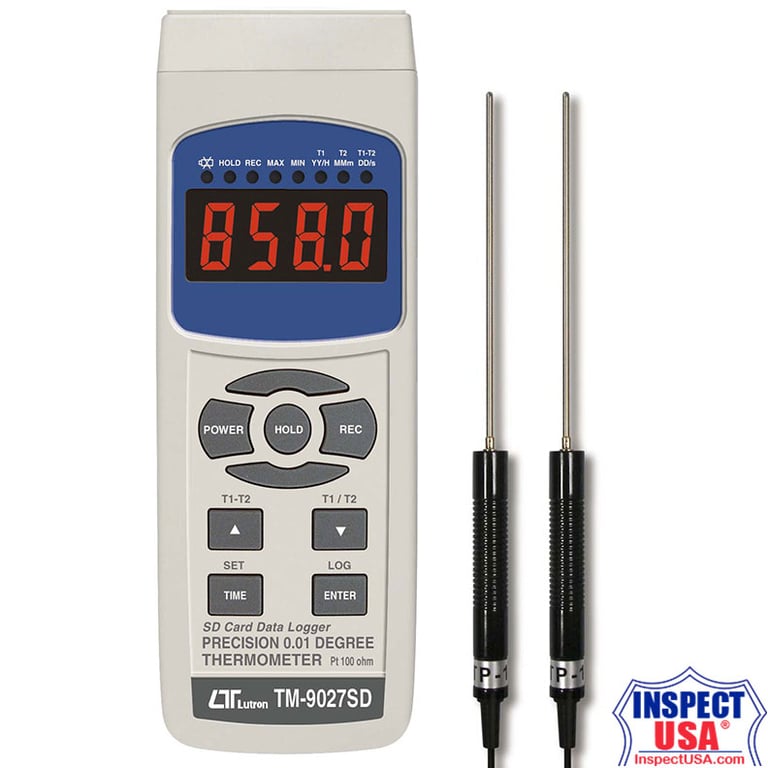

Lutron 2 Channel Precision Thermometer (TM-9027SD) Datalogger, records onto optional SD card.
The TM-9027SD Precision Thermometer offers accurate and reliable temperature measurements with advanced features, making it an essential tool for various scientific and industrial applications.
1. Dual-Channel Measurement:
- Supports two channels for Pt 100 ohm input, allowing simultaneous measurements of Pt 1, Pt 2, and Pt 1-Pt 2.
2. Real-Time Data Logging:
- Equipped with an SD card real-time data logger, built-in clock, and calendar for accurate time-stamped data recording. Data can be exported directly to Excel for further analysis.
3. High Accuracy and Flexibility:
- Offers high accuracy with linear compensation for the full range of Pt 100 ohm measurements from -199.99℃ to 850.00℃ (-327℉ to 1562℉). The measurement unit can be selected as ℃ or ℉.
4. User-Friendly Operation:
- Features a red LED display for clear readability, data hold function, memory recall for maximum and minimum values, and easy operation with offset adjustment and various sampling time settings.
5. Comprehensive Data Management:
- Includes RS232/USB PC computer interface for easy data transfer. Supports both auto and manual data logging modes with adjustable sampling times from 1 second to 3600 seconds.
Technical Specifications:
- Measurement Range:
- Pt 100 ohm: -199.99℃ to 850.00℃ / -327℉ to 1562℉
- Resolution:
- 0.01℃ / 0.1℃ / 1℃ and 0.01℉ / 0.1℉ / 1℉
- Accuracy:
- ± (0.4% + 1℃) for -199.9℃ to 99.9℃
- ± (0.4% + 1.8℉) for -327℉ to 199.9℉
- Display: 4 digits red LED, 14 mm (0.55 inch) digit height
- Sampling Time:
- Auto: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
- Manual: Push data logger button to save data once per push
- Power Supply: 6 AA batteries (UM3, 1.5V) or DC 9V adapter (optional)
- Power Consumption:
- Normal operation (without SD card saving data): Approx. DC 24 mA
- With SD card saving data: Approx. DC 50 mA
- Dimensions:
- Main instrument: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)
- Weight: 278 g (0.61 lb) without batteries
Versatile Applications:
Ideal for use in laboratories, industrial settings, quality control, and any application requiring precise temperature measurements and data logging.
Invest in the TM-9027SD Precision Thermometer for reliable, precise temperature measurements and a robust design that meets the diverse needs of various scientific and industrial environments.
