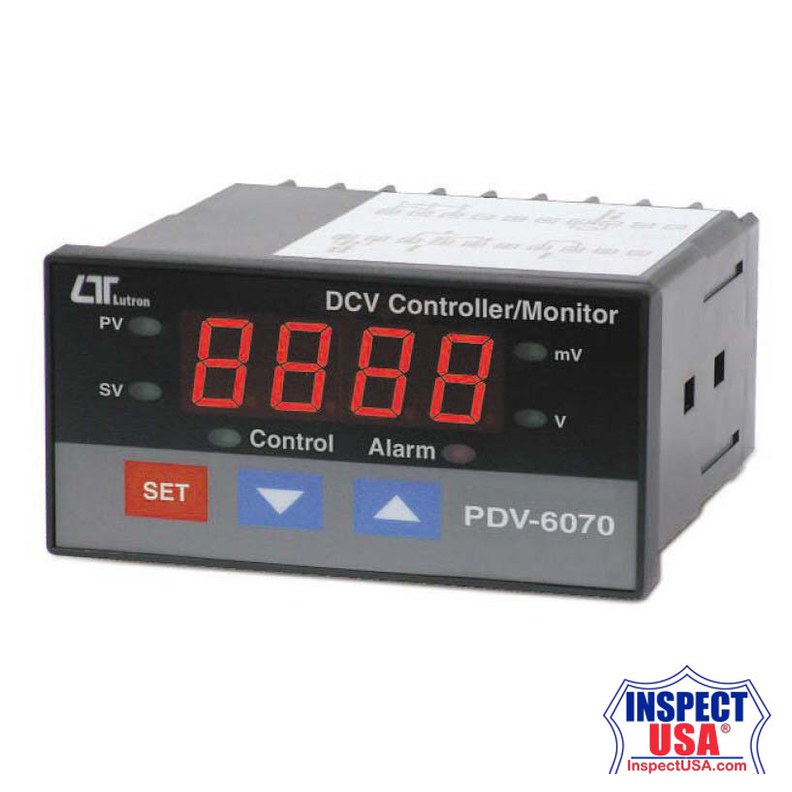

Lutron Dcv Controller/Monitor (PDV-6070)

Reference only — not for sale

Model	PDV-6070
Manufacturer	Lutron Instruments
Status	Discontinued

Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron Dcv Controller/Monitor (PDV-6070)

Features:

Professional DCV meter with standard DIN case ( 96 x 48 mm) and Control / Alarm Function.
Microprocessor circuit ensures high accuracy and provide special functions and features .
Measurement DC Voltage : 200 mV x 0.1 mV / 2 V x 0.001 V / 20 V x 0.01 V / 200 V x 0.1 V / 600 V x 1 V .
Measurement range can be adjusted by jumper .
Input Impedance 10 MΩ .
Large red LED display ,high brightness and easy to read.
Control output : 2 point ( COM,NO ).
Alarm output : 2 point ( COM,NO ).
Control Relay will make action when the reading value reach to control value.
Hysteresis value setting for control and alarm function .
RS232 / USB Computer interface .
Power : 90 ACV – 260 ACV , 50 / 60Hz .
