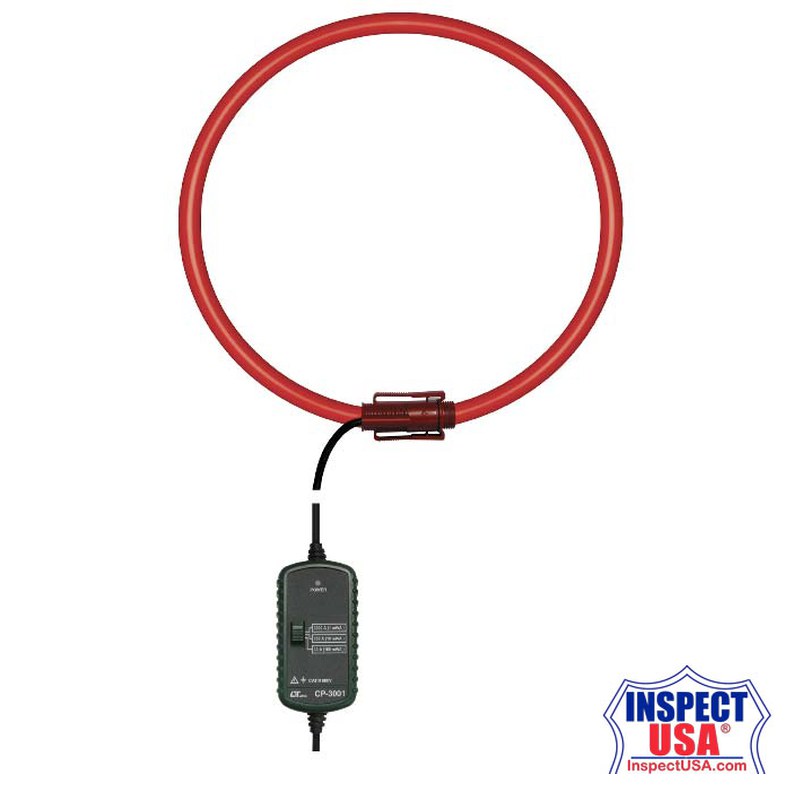

Lutron Flexible 3000 Amp Current Probe (CP-3001-R)

Reference only — not for sale

Model	CP-3001-R
Manufacturer	Lutron Instruments
Category	Meter Accessories
Status	Discontinued

Browse all Meter Accessories Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron Flexible 3000 Amp Current Probe (CP-3001-R)

Battery power, AC to DC adapter power.

Features:

Range : 30 A/300 A/3000 A.
Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
Flexible probe length : 600 mm ( 23.6 inch ). Flexible probe diameter : 15 mm.
When changing the new probe, the calibration procedures are not necessary to be executed.
Output cable : 2 cables (4 meters in length ), use the banana plugs, durable and safety.
Power supply : DC 1.5V battery ( UM-3/AA ) x 2 PCs or DC 9V adapter in. AC to DC 9V adapter is optional.
CP-3001 can cooperate any kind DMM ( ACmV meters ), if those meters are built-in the ACV mV measurement range to be used as the AC 3000 Amps ( max. ) current meter.
Range : 30 A/300 A/3000 A.
Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
Flexible probe length : 600 mm ( 23.6 inch ). Flexible probe diameter : 15 mm.
