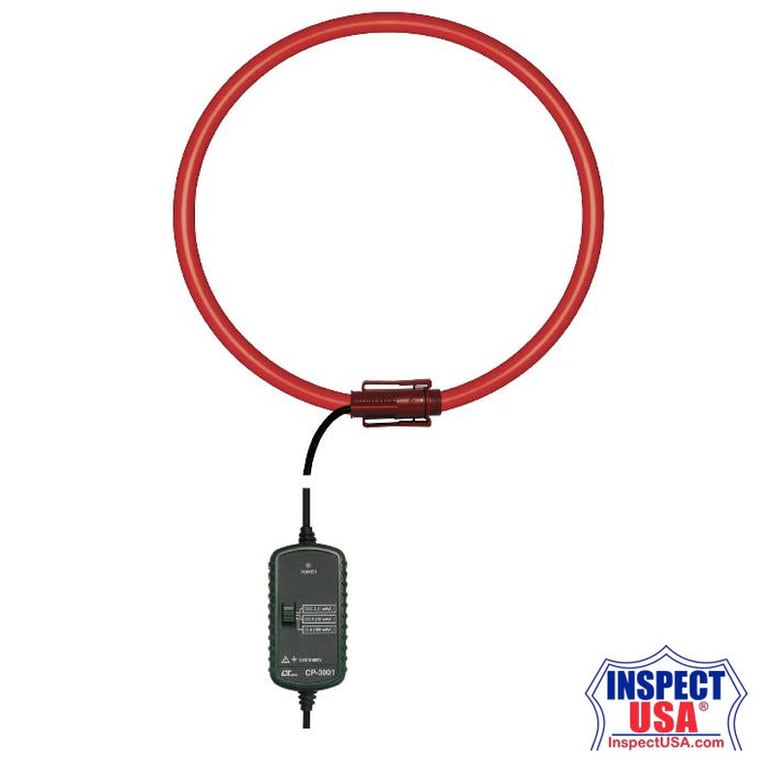

Lutron Flexible 3000 Amp Current Probe (CP-3001-R)

Lutron Flexible 3000 Amp Current Probe (CP-3001-R)

Battery power, AC to DC adapter power.

Features:

• Range : 30 A/300 A/3000 A.
• Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
• Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
• Flexible probe length : 600 mm ( 23.6 inch ). Flexible probe diameter : 15 mm.
• When changing the new probe, the calibration procedures are not necessary to be executed.
• Output cable : 2 cables (4 meters in length ), use the banana plugs, durable and safety.
• Power supply : DC 1.5V battery ( UM-3/AA ) x 2 PCs or DC 9V adapter in. AC to DC 9V adapter is optional.
• CP-3001 can cooperate any kind DMM ( ACmV meters ), if those meters are built-in the ACV mV measurement range to be used as the AC 3000 Amps ( max. ) current meter.
• Range : 30 A/300 A/3000 A.
• Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
• Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
• Flexible probe length : 600 mm ( 23.6 inch ). Flexible probe diameter : 15 mm.
