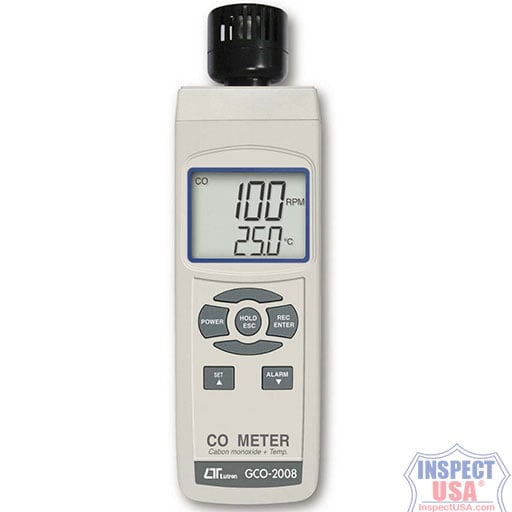

Lutron Precision Carbon Monoxide Meter (GC-2008) 1000PPM

Lutron GCO-2008 Carbon Monoxide Meter, Range from 0 to 1,000 PPM.

The GCO-2008 Carbon Monoxide Meter is a portable, multi-function device that measures both CO levels and temperature, ideal for environmental safety monitoring. It features a broad CO measurement range of 0 to 1000 PPM with a 1 PPM resolution and offers a quick response time. Designed for accurate readings, the GCO-2008 is equipped with a high-contrast LCD display, data hold, and maximum/minimum recall functions. With alarm settings, auto power-off, and compatibility with RS232/USB interfaces for data transfer, this meter is suitable for both field use and industrial environments requiring reliable CO monitoring.

Features

• Measures Carbon Monoxide (CO) levels from 0 to 1000 PPM with a 1 PPM resolution.
• Temperature measurement from 0 to 50℃ (32 to 122℉).
• Fast response time for CO measurement (< 30 seconds to reach 90% of reading).
• High accuracy and repeatability: CO accuracy ±(5% + 2 PPM), repeatability < 2%.
• CO function includes alarm settings for user-defined thresholds.
• High-contrast dual-function LCD for easy reading.
• Data hold function to freeze the display reading.
• Records and recalls maximum and minimum readings.
• RS232/USB interface for data output with optional cables (UPCB-02 for RS232, USB-01 for USB).
• Microprocessor-controlled circuit for accuracy and reliability.
• Auto power-off feature to save battery life.
• Powered by six AAA (UM4) batteries or optional DC 9V adapter.

General Specifications

• Display: 52 mm x 38 mm dual-function LCD.
• CO sensor type: Electrochemical sensor.
• Temperature sensor: Thermistor-based measurement.
• Operating temperature: 0 to 50℃ (32 to 122℉).
• Operating humidity: Less than 85% RH.
• Power supply: 6 x AAA batteries (UM4) or DC 9V adapter (optional).
• Power consumption: Approx. DC 5.6 mA.

Dimensions and Weight

• Dimensions: 210 x 68 x 42 mm (8.3 x 2.7 x 1.2 inches).
• Weight: 336 g (0.74 lbs) including batteries.

Accessories Included

• Instruction manual: 1 PC.
• Soft carrying case (CA-05A): 1 PC.

Optional Accessories

• RS232 cable (UPCB-02).
• USB cable (USB-01).
• Data acquisition software (SW-U801-WIN).

Electrical Specifications (23 ± 5℃)

• Carbon Monoxide (CO):
  • Range: 0 to 1000 PPM.
  • Resolution: 1 PPM.
  • Accuracy: ±(5% + 2 PPM).
  • Response time: < 30 seconds to reach 90% of the reading.
  • Long-term zero drift: < 5 PPM.
  • Sensitivity drift: < 5% per year.
• Temperature:
  • Range: 0 to 50℃ (32 to 122℉).
  • Resolution: 0.1℃/℉.
  • Accuracy: ±0.8℃/1.5℉.
