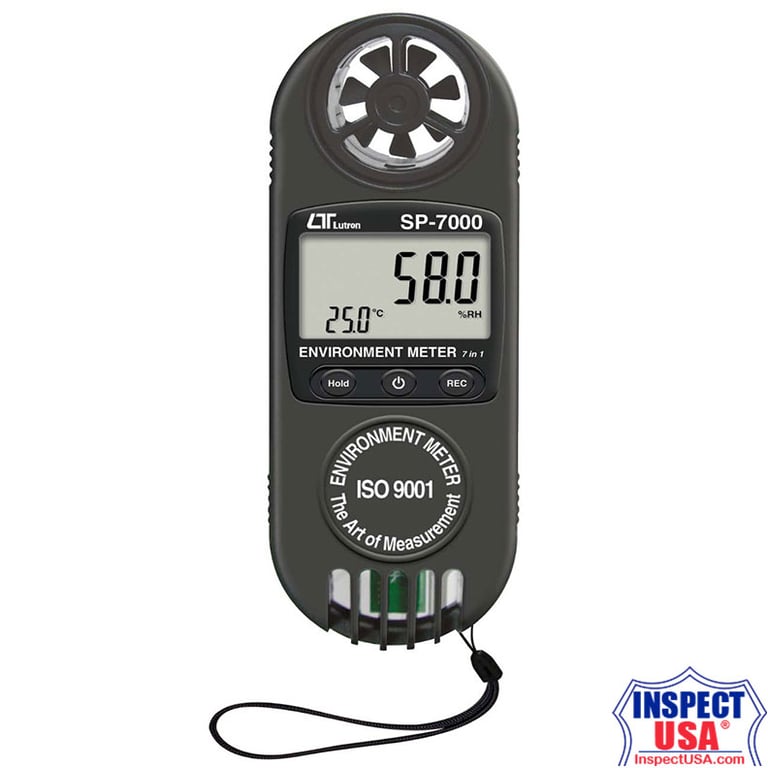

7-in-1 Heat Index, Dewpoint, Wet Bulb (SP-7000) Air Speed, Temp, RH

Lutron 7-in-1 environment meter measures air speed, CFM, humidity, temperature, heat index, wind chill, dew point and wet bulb temperature.

The SP-7000, 7-in-1 HVAC/Environment Meter provides accurate and reliable measurements of air velocity, air flow, humidity, temperature, dew point, wet bulb temperature, wind chill and heat index.

• Mini pocket environmental conditions meter.
• Memorize the maximum and minimum value with recall.
• Hold function to freeze the current reading value.
• °C / °F selectable.
• Compact bone shape with lightweight and small size case design.
• Wristlet design provides extra protection to the instrument especially for one hand operation.
• Low-friction ball bearing mounted wheel design provides high accuracy at high and low air velocity.
• Low battery indicator.
• Auto power off (can be disabled).

Specifications:

• Air velocity range:
  • 80 to 3937 FPM, Feet Per Minute with a resolution of 1 FPM.
  • 0.4 to 20.0 MPS, Meters per Second with a resolution of 0.1 MPS.
  • 1.4 to 72.0 KMH, Kilometers Per Hour with a resolution of 0.1 KMH.
  • 0.9 to 44.7 MPH, Miles Per Hour with a resolution of 0.1 MPH.
  • 0.8 to 38.8 Knots with a resolution of 0.1 Knots.
• Air velocity accuracy: within 3% of reading.
• Air flow range:
  • CMM: 0.024 to 36000 with these resolutions: 0.001 / 0.01 / 0.1 and 1.
  • CFM: 0.847 to 1271300 with these resolutions: 0.001 / 0.01 / 0.1 / 1/ 10 (x10) / 100 (x100).
• Temperature range: 32° to 122° F (0 to 50° C) with a resolution of 0.1°.
• Temperature accuracy: within 2.5° F (1.2° C).
• Humidity range: 10 to 95% with a resolution of 0.1% RH.
• Humidity accuracy: within 4% RH.
• Dew point temperature range: -13.5 to 120.0° F (-25.3 to 49.0° C) with a resolution of 0.1°.
• Wet bulb temperature range: -22.2 to 120.0° F (-5.4 to 49.0° C) with a resolution of 0.1°.
• Wind chill temperature range: -15.0 to 112.0° F (-9.4 to 44.2° C) with a resolution of 0.1°.
• Wind chill accuracy: within 3.6° F (2.0° C).
• Heat index temperature range: 32 to 212.0° F (0 to 100° C) with a resolution of 0.1°.
• Heat index accuracy: within 3.6° F (2.0° C).
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE: the average CR2032 batteries are not rated for below -4° F or above 145° F.
• Operating Humidity: less than 85% RH non-condensing.
• Weight: approximately 5.7 ounces with battery installed.
• Dimensions: 4.7" x 1.8" x 1.2" (120x45x20mm).
• Power: 1 CR2032 Button Cell 3 volt.

Supplied with:

• Operating instructions.
• Safety strap lanyard.
• Battery.

Download Users Manual (PDF format)

Link to the technical data sheet that is provided for Lutron sp-7000
