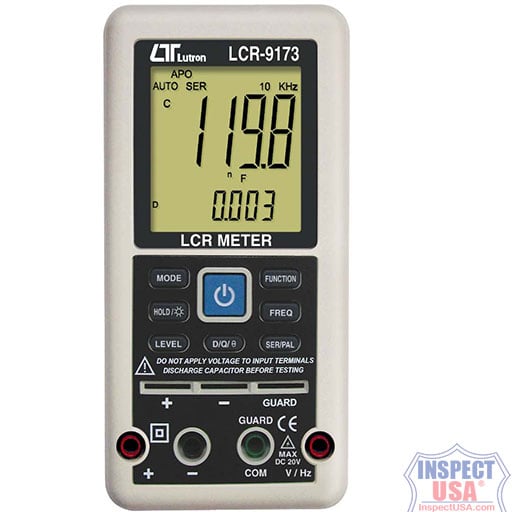

Lutron LCR Meter (LCR-9173) Inductance, Capacitance & Resistance

Lutron LCR Meter (LCR-9173) Inductance, Capacitance & Resistance

The LCR-9173 is a high-precision LCR meter designed to measure inductance, capacitance, resistance, and impedance across multiple test frequencies. With four selectable frequencies (100 Hz, 120 Hz, 1 kHz, and 10 kHz), it provides flexible measurement options suitable for both laboratory and field applications. The meter supports a wide range of components, including SMDs, and offers advanced features like data hold, open/short calibration, and dual power supply options. Compact and user-friendly, the LCR-9173 is ideal for accurate component testing and troubleshooting.

Features

• 6000-count ADC resolution for detailed measurements.
• Supports four test frequencies: 100 Hz, 120 Hz, 1 kHz, and 10 kHz.
• Measures impedance (Z), DCR (direct current resistance), and other parameters like dissipation factor (D), quality factor (Q), and phase angle (θ).
• Selectable measurement modes for different configurations: Ls/Lp, Cs/Cp, Rs/Rp.
• High-performance analog front end for precise impedance measurements.
• Simple DMM front end for DC voltage, frequency, and diode testing.
• Low battery detector and auto power-off to save battery life.
• Data hold function to freeze readings on display.
• Powered by 9V battery or optional AC/DC adapter.

General Specifications

• Display: 46.5 x 45.5 mm LCD.
• Measurement modes: Inductance, capacitance, resistance with D/Q/θ options.
• Operating temperature: 0 to 50℃.
• Operating humidity: Less than 85% RH.
• Power supply: 006P 9V battery or optional AC/DC adapter.
• Power consumption: Approx. DC 6 mA.

Dimensions and Weight

• Dimensions: 151 x 78 x 43 mm.
• Weight: 235 g (meter only).

Accessories Included

• Instruction manual: 1 PC.
• Alligator clips: 1 set.

Optional Accessories

• SMD tester (SMDA-22).
• SMD test clip (SMDC-21).
• AC to DC 9V adapter.

Electrical Specifications (23 ± 5℃)

• Inductance (Ls/Lp):
  • Range: 600.0 uH to 60.00 H (frequency-dependent).
  • Accuracy: ±(1.5% + 5d) at 1 kHz; ±(2.5% + 5d) at 10 kHz.
• Capacitance (Cs/Cp):
  • Range: 600.0 pF to 6000 uF (frequency-dependent).
  • Accuracy: ±(1.5% + 5d) at 1 kHz; ±(2.5% + 5d) at 10 kHz.
• Resistance (DCR):
  • Range: 60 Ω to 20 MΩ.
  • Accuracy: ±(1.0% + 5d) at 1 kHz; ±(3.0% + 5d) at 10 kHz.

Usage Notes

• Do not apply voltages larger than 30 V to input terminals.
• Discharge capacitors before measurement for accuracy.
• For accurate measurements of SMD components, use optional SMD tester or test clip.
