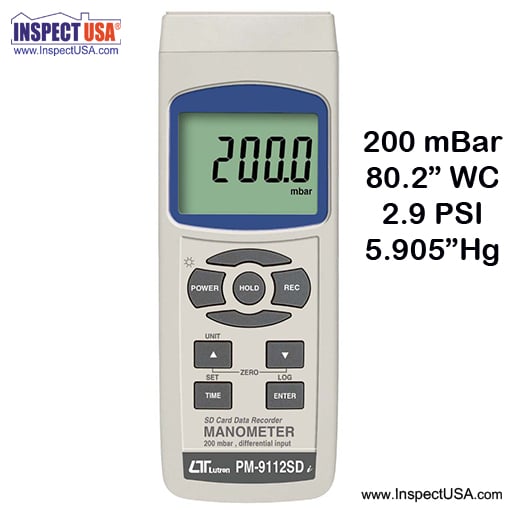

Hi Resolution Manometer 80.2" WC (PM-9112SD) DataLogging

The Lutron Digital Manometer, measures 200mBar, 80.2 inches of Water Column , 2.9 PSI and can record measurements on an optional SD Card.

• Measurement range:
  • 80.2 inch/H2O, 0.05 resolution
  • 200 m bar, 0.1 resolution
  • 2.9 psi, 0.002 resolution
  • 0.204 Kg/cm2, 0.001 resolution
  • 150 mm/Hg, 0.1 resolution
  • 5.905 inch/Hg, 0.005 resolution
  • 04 meter/H2O, 0.001 resolution
  • 0.197 Atmosphere, 0.001 resolution
• Accuracy is within plus or minus 2% of FS (full scale)
• Dual & differential input
• SD card capacity: 1 to 16 GB
• Single lugs for pipe connection
• Data hold will freeze the display reading. Also records maximum and minimum reading.
• Zero button on the front panel, easy to offset the zero value
• Microprocessor circuit assures maximum possible accuracy while providing special functions and features
• Power Supply
  • (6) AA Alkaline 1.5 Volt DC batteries, or equivalent
  • Optional AC to DC power transformer DC 9V (AP-9vA110) or through USB port (USBP-59)
• Auto shut off saves battery life
• Data Output:
  • to RS232 port with optional cable UPCB-02
  • to USB port with optional cable USB-01
• Display LCD size: 61 mm x 34 mm LCD green backlight (ON/OFF) with contrast adjustment for best viewing angle
• Piezoelectric sensor is built inside the housing and is used for dry, non-corrosive and non-ionic air and gas only. Liquid is prohibited.
• Datalogger Sampling Time
  • Auto mode can be set for 1 second to 3600 seconds (when set to 1 second, larger SD card may be needed)
  • Manual mode can store up to 99 readings
• Memory Card Advanced setting SD memory card. 1 GB to 16 GB.
  • Set clock time
    (Year/Month/Date,Hour/Minute/Second )
  • Set sampling time
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Decimal point of SD card setting
  • SD memory card Format
  • Unit setting
• Sampling Time of Display: Approx. 1 second
• Operating Temperature: 32° to 122°F (0° to 50°C)
  NOTE most batteries are not rated for below -4° F or above 125° F
• Operating Humidity: Less than 85% RH non condensing
• Dimensions: 7.5" x 2.7" x 1.8".
• Weight: 1.08 pounds.

Supplied with:

• Hard plastic carrying case.
• Users manual.
• (2) quick couplers. MTL-CQ9100.

Optional:

• 16 gB SD Card SD-16gB.
• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• RS-232 cable UPCB-02
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.

Download Users Manual (PDF format)

Link to the technical data sheet that is provided for Lutron PM-9112SD
