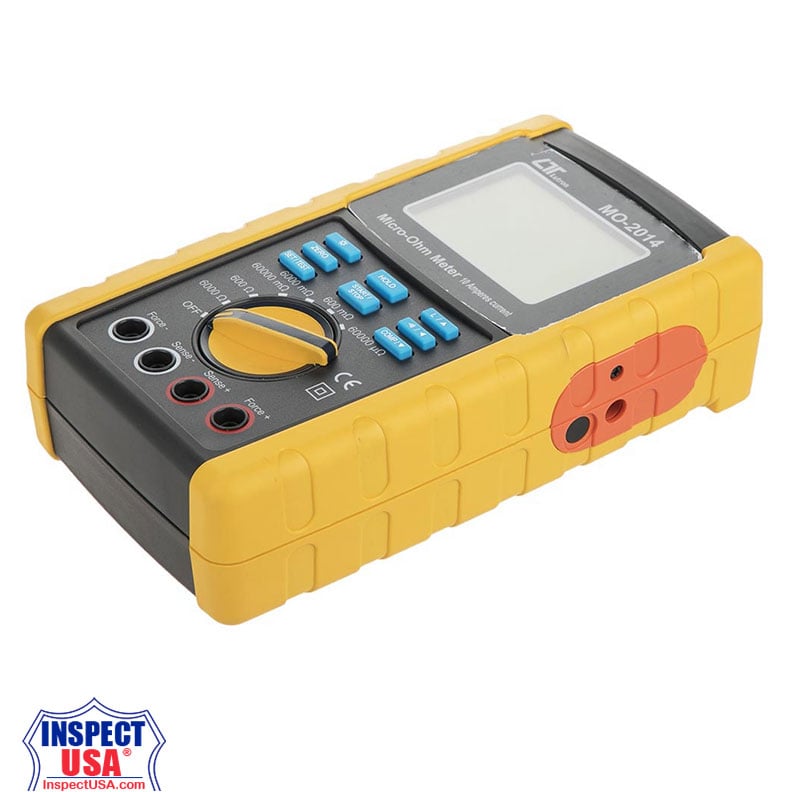

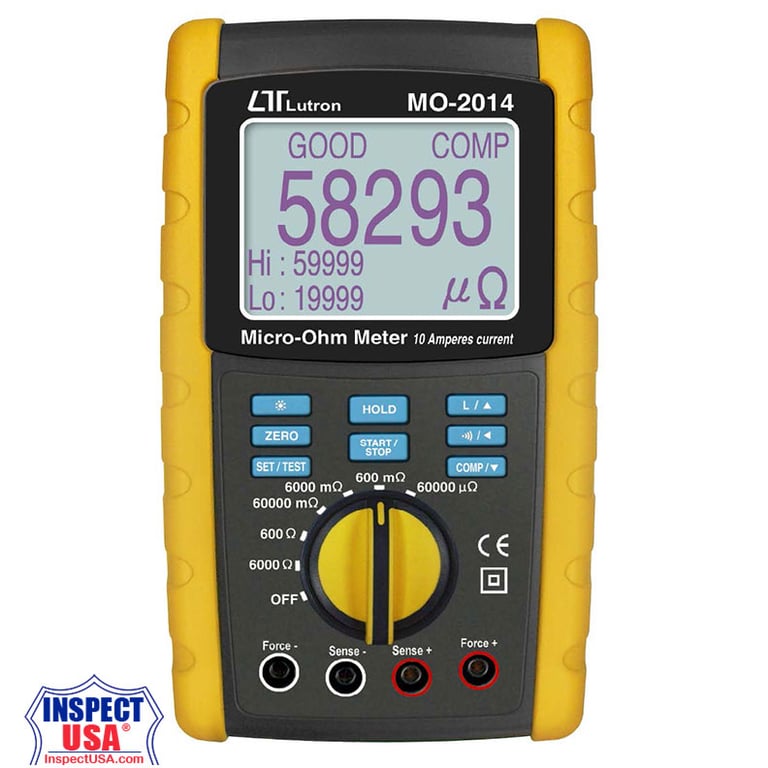

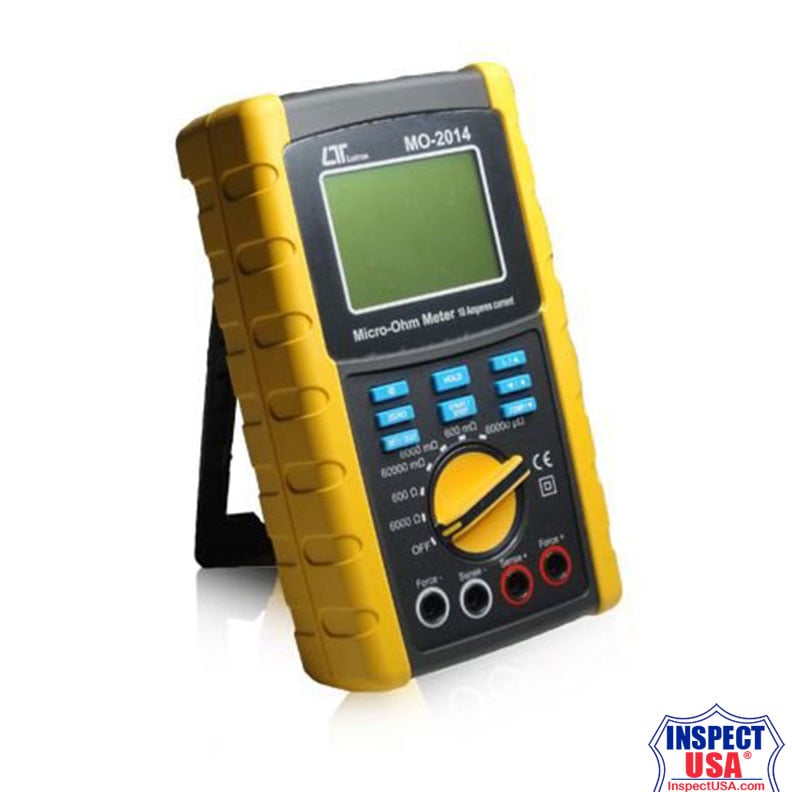

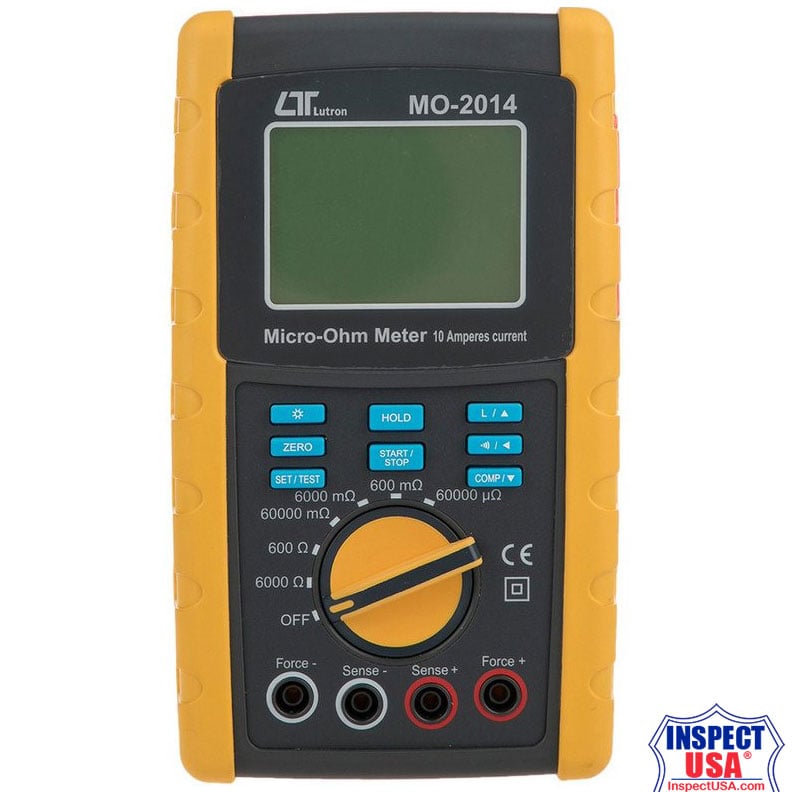

Megger Micro-Ohm Meter (MO-2014) Ruggedized with Leads

Lutron Megger Micro-Ohm Meter, Model MO-2014 with Ruggedized Boot, Leads, and Carrying Case

Quickly check contact resistance in critical electrical connections, test for open or short windings in motors, generators, and transformers, and evaluate wire-to-wire resistance and heating elements. The integrated measurement comparator function provides fast Pass / Fail indication.

1. 4-Terminal Measurement: Ensures accurate very-low-resistance readings for components, protective conductors, lightning conductors, and welded points.
2. High Test Current: Provides up to 10A test current, ideal for measuring low resistance in the 60,000 µΩ range.
3. Dual Working Modes: Offers resistive and inductive modes (resistive mode is default) for versatile measurement conditions.
4. User-Friendly Operation: Includes a “Good/Fail” set function and a built-in buzzer for QC judgments.
5. Special Functionality: “CALCULATE” mode allows cable/wire length measurement using ohms-per-foot entry.

Features

• Selectable resistive or inductive measuring modes.
• User-defined Pass/Fail value with buzzer indication.
• Cable length calculation using ohms-per-foot input.
• 4-wire Kelvin method for milliohm measurement.
• Maximum test current of 10A using the 60,000 µΩ range.
• Available test levels: 10A, 1A, 100 mA, 10 mA, and 1 mA.
• Large, easy-to-read LCD.
• Low battery indicator.
• Meets safety standards EN 61010-1 and EN 61326-1.

Specifications

• Ranges & Resolutions:
  • 60,000 µΩ / 1 µΩ @ 10A.
  • 600 mΩ / 0.01 mΩ @ 1A.
  • 6000 mΩ / 0.1 mΩ @ 100 mA.
  • 60,000 mΩ / 1 mΩ @ 10 mA.
  • 600 Ω / 10 mΩ @ 1 mA.
• Accuracy: Within (0.75% of reading + 3 digits).
• Operating Temperature: 32°F to 122°F (0°C to 50°C).
  NOTE: Most batteries are not rated for below −4°F or above 125°F.
• Operating Humidity: Less than 85% RH, non-condensing.
• Power: Eight “AA” batteries or included power adapter.
• Dimensions: 8.86" × 4.92" × 2.52".
• Weight: 1.74 lb.

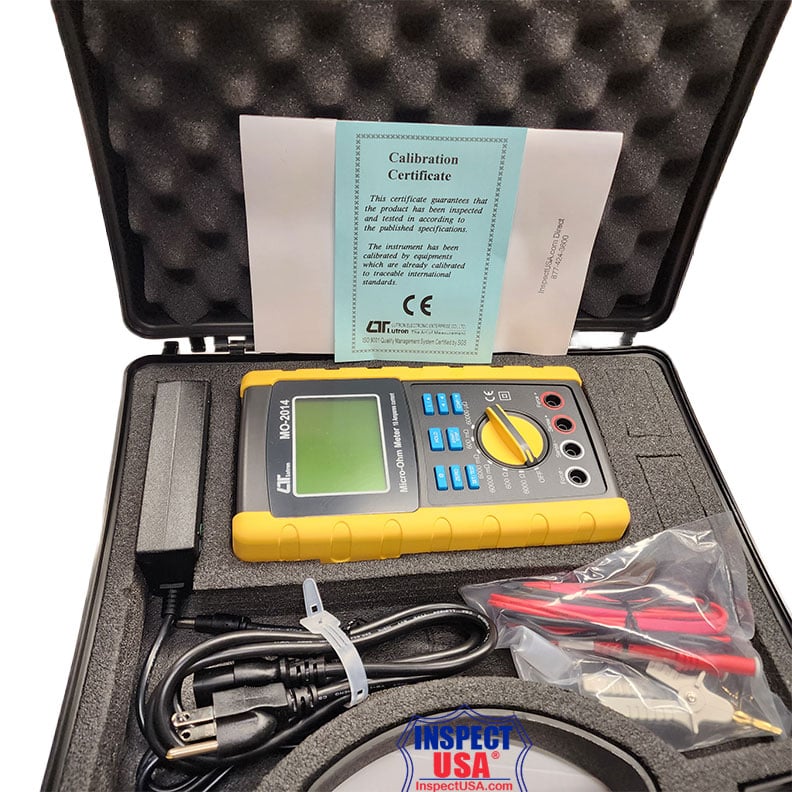

Included Accessories

• Instruction manual.

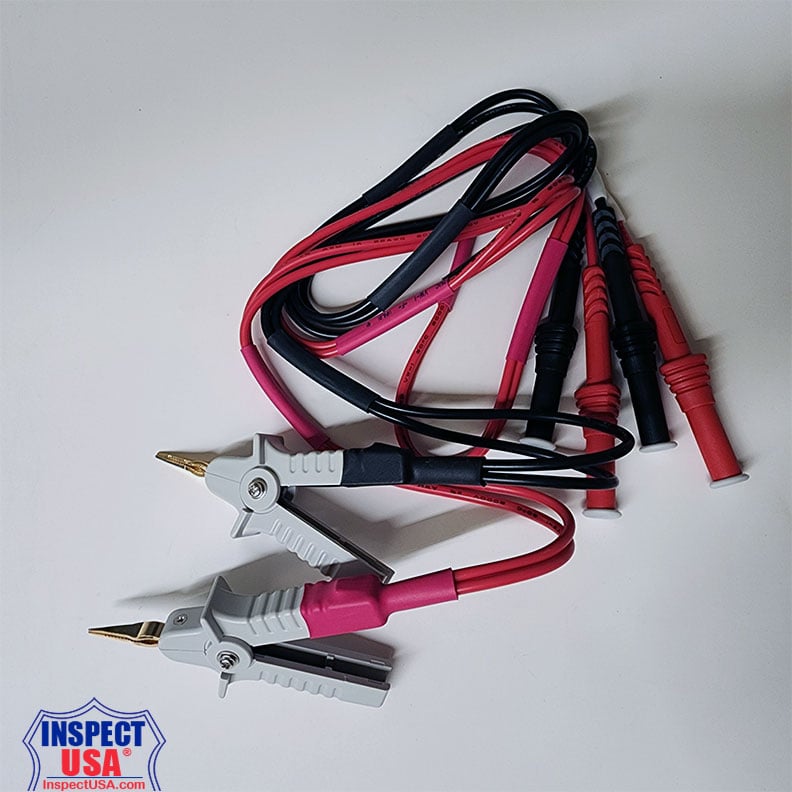

• Standard 4-wire Kelvin clip leads (1 pair).
• AC/DC 9V power adapter (AC-A89C).
• Carrying case (CA-08).

Optional Items

• Lutron Data Acquisition Software for Windows — SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver — USB-01.
• RS-232 Cable — UPCB-02.
