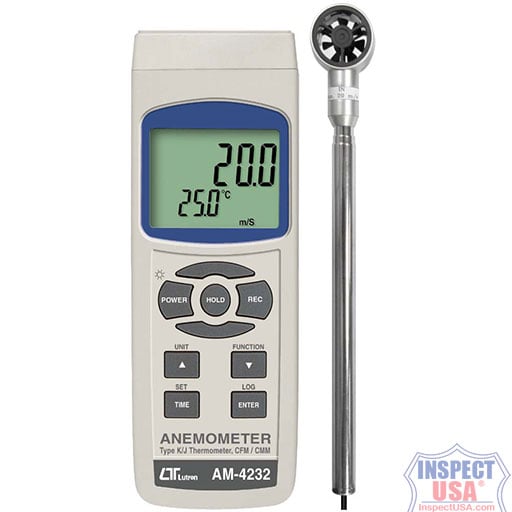

Lutron Mini Vane Anemometer (AM-4232) Telescoping Probe

Lutron Mini Vane Anemometer (AM-4232) Telescoping Probe. Lutron Handheld Measures Temperature, Humidity and Wind Speed Meter

• Mini vane with 35 mm diameter, low-friction ball bearing mounted wheel for high accuracy at both high and low air velocities.
• Telescope probe with a maximum extension length of 620 mm.
• Replacement anemometer vane set available.
• Measures air velocity in m/s, Ft/min, Km/h, Knots, and Mile/h.
• Air flow measurement in CMM (cubic meters per minute) and CFM (cubic feet per minute).
• Air temperature measurement with fast response using a thermistor sensor.
• Supports Type K and Type J thermocouple thermometers.
• Data hold function to freeze the reading and record maximum and minimum values.
• RS232/USB computer interface for data transfer.
• LCD with green backlight for easy reading.
• Auto or manual power-off option available.
• Microcomputer circuit for high accuracy.
• Powered by 6 UM3/AA 1.5V batteries or a DC 9V adapter.
• Separate probe design for ease of use.
• Applications include environmental testing, HVAC, air conveyors, flow hoods, clean rooms, air velocity monitoring, air balancing, fans, motors, blowers, furnace velocity, refrigerated cases, and paint spray booths.

General Specifications

• Circuit: Custom one-chip microprocessor LSI circuit.
• Display: 52 mm x 38 mm LCD with green backlight (ON/OFF).
• Measurement functions: Air velocity, air flow, air temperature, and thermocouple thermometer (Type K/J).

Power Supply

• 6 AA (UM3) batteries, or AC to DC 9V adapter input (optional).
• Normal operation power consumption: Approx. DC 30 mA.

Dimensions and Weight

• Main instrument dimensions: 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inches).
• Anemometer sensor probe diameter: 72 mm.
• Weight: 347 g (0.76 lbs) for the meter only.

Accessories Included

• Instruction manual: 1 PC.
• Anemometer probe: 1 PC.
• Hard carrying case (CA-06): 1 PC.

Optional Accessories

• Type K thermocouple probes.
• AC to DC 9V adapter.
• USB cable (USB-01).
• RS232 cable (UPCB-02).
• Data acquisition software (SW-U801-WIN).
• Excel data acquisition software (SW-E802).

Electrical Specifications (23 ± 5℃)

• Air Velocity:
  • Range: 0.2 to 20.0 m/s, 0.70 to 72.0 km/h, 0.50 to 44.7 mph, 0.40 to 38.8 knots, 40 to 3940 ft/min.
  • Resolution: 0.01 to 0.1 depending on the unit.
  • Accuracy: ±(5% + specified constant) depending on range and unit.
• Air Temperature:
  • Range: 0 to 50℃ (32 to 122℉).
  • Resolution: 0.1℃/℉.
  • Accuracy: ±0.8℃/1.5℉.
• Air Flow (CMM, CFM):
  • Range: 0 to 54,000 CMM (m³/min) and 0 to 1,907,000 CFM (ft³/min).
  • Resolution varies based on range and unit.
• Type K/J Thermometer:
  • Type K: Range -50.0 to 1300.0℃, -58.0 to 2372.0℉; accuracy varies based on range.
  • Type J: Range -50.0 to 1200.0℃, -58.0 to 2192.0℉; accuracy varies based on range.

Advanced Settings

• Auto power OFF management.
• Beep sound ON/OFF setting.
• Thermometer type selection (Type K or Type J).
• Temperature unit selection (℃ or ℉).
• Air flow type selection (CFM for USA, CMM for EURO).
• Air flow area dimension setup.

Data Output

• RS232/USB PC interface for data transfer:
  • RS232 cable (UPCB-02) for RS232 plug connection.
  • USB cable (USB-01) for USB plug connection.

Environmental Specifications

• Operating temperature: 0 to 50℃.
• Operating humidity: Less than 85% RH.
