Lutron Multimeter + LCR (DM-9862)

Reference only — not for sale

Model	DM-9862
Manufacturer	Lutron Instruments
Category	Multimeters / LCR
Status	Discontinued

Browse all Multimeters / LCR Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

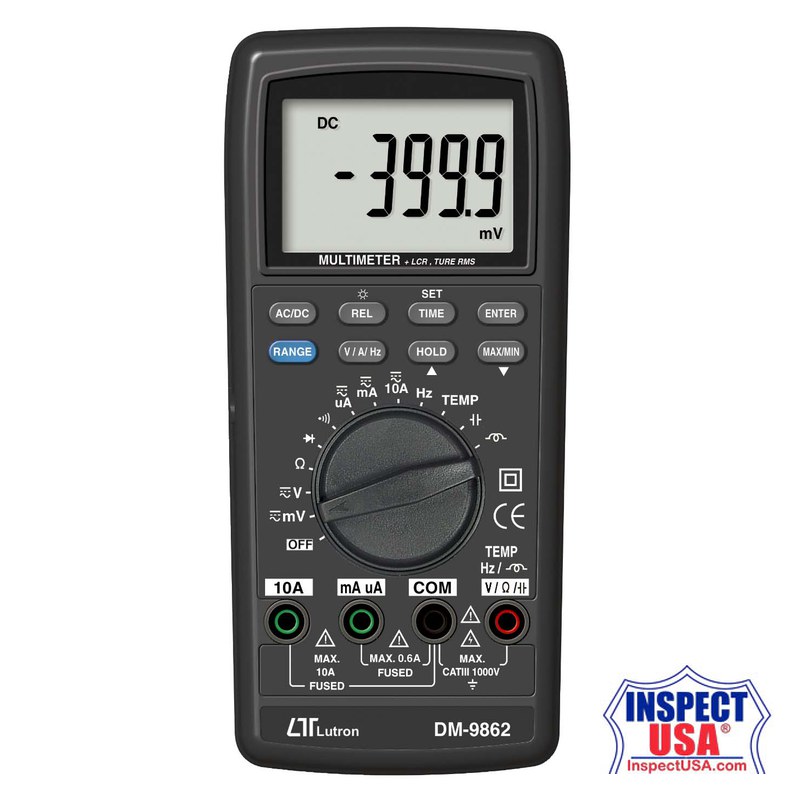

Lutron Multimeter + LCR (DM-9862)

RS232/USB computer interface.

Features:

Meet IEC 1010 CAT III 1000 V safety requirement.
LCD with green light backlight, easy reading.
6000 counts A/D, high resolution.
Multi function measurement. DCV, ACV, DCA, ACA, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Continuity beeper.
Max. & Min. measurement value with recall.
Relative, Data hold.
Auto range with manual range selection.
Temperature measurement possibility.
VAHz button, when execute the ACV, ACA function also can measure the frequency of signal.
Both 10 A, mA, uA current are build fuse for safety consideration.
10 M ohm impedance for voltage circuit.
Operates from 9 V ( 006P, MIN1604 ) batteries.
