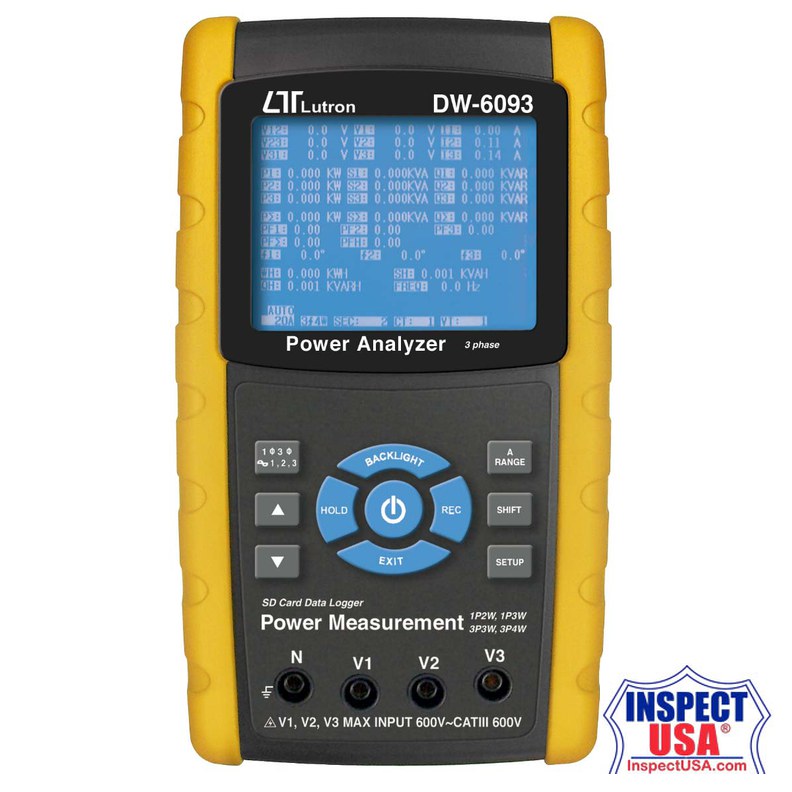

Lutron 3 Phase Power Analyzer (DW-6093)

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron 3 Phase Power Analyzer (DW-6093)

1 phase/2 wire, 1 phase/3 wire, SD card data recorder.

Features:

• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
• Voltage & Current are the True RMS value.
• True Power ( KW、MW、GW ) measurement.
• Apparent Power ( KVA、MVA、GVA ) measurement.
• Reactive Power ( KVAR MVAR、GVAR) measurement.
• Watt-Hour ( WH、SH、QH、PFH ).
• Power Factor( PF )、Phase Angle( Φ ).
• Voltage measurement range : 10 to 600 ACV
• Current probe input signal volage ( ACV ) : 200 mV/300 mV/500 mV/1 V/2 V/3 V. Current probe input current range ( ACA ) : 20 A/200 A/2000 A ( 1200 A )/30 A/300A /3000 A.
• Meter can cooperate the universal current probe.
• Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
• ACV input impedance is 10 Mega ohms.
