Pocket Solar UV Intensity Meter (SP-82UV) Wide Range

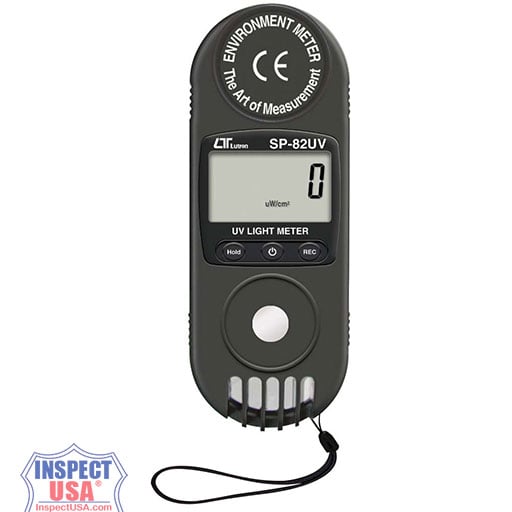

Lutron SP-82UV Pocket Wide Range Solar UV Intensity Meter

Lutron Pocket Solar UV Intensity Meter. Model SP-82UV has a Wide Range to measure the sun's impact in ultra-violet light intensity.

Features for the SP-82UV:

• UV light measurement, calibration is executed under the UVA light & and compare with the standards for UVA light meters.
• Wide UV sensor spectrum.
• Tiny bone shape with light weight and small size case design are suitable for handling with one hand.
• Wristlet design provides extra protection to the instrument especially for user one hand operation.
• Built- in microprocessor circuit assures excellent performance and accuracy.
• Concise and compact buttons arrangement, easy operation.
• Memorize the maximum and minimum value with recall.
• Hold function to freeze the current reading value.

Specifications for the SP-82UV:

• Measurement range :
  • 0 to 1999 uW/cm2 with 1 uW/cm2 resolution.
  • 2 to 20.00 mW/cm2 with 0.01 mW/cm2 resolution.
• Accuracy: within 96% of Full Scale + 2 digits.

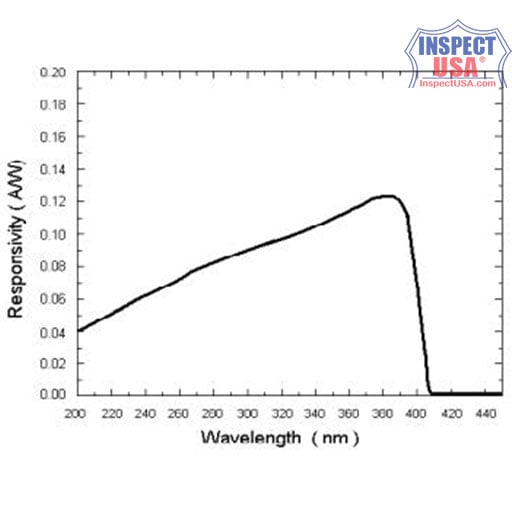

• UV sensor spectrum Band pass 250 nm to 390 nm.
• Display: 8 mm LCD display.
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Over Input Indication of "- - - - "
• Power Supply: (1) CR2032 Button Type 3V Lithium battery.
• Power Consumption: approximately 5 mA DC.
• Weight: 5.7 ounces (160g) with battery installed.

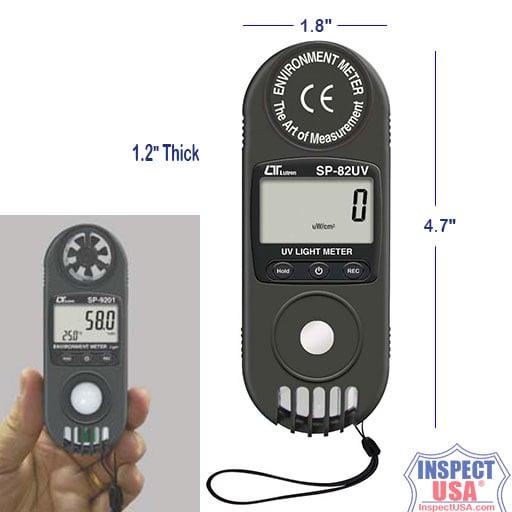

• Dimensions HWD: 4.7" x 1.8" x 1.2" (120 x 45 x 20mm).

Download Users Manual (PDF format) for the SP-82UV.

Link to the technical data sheet that is provided for Lutron SP-82UV
