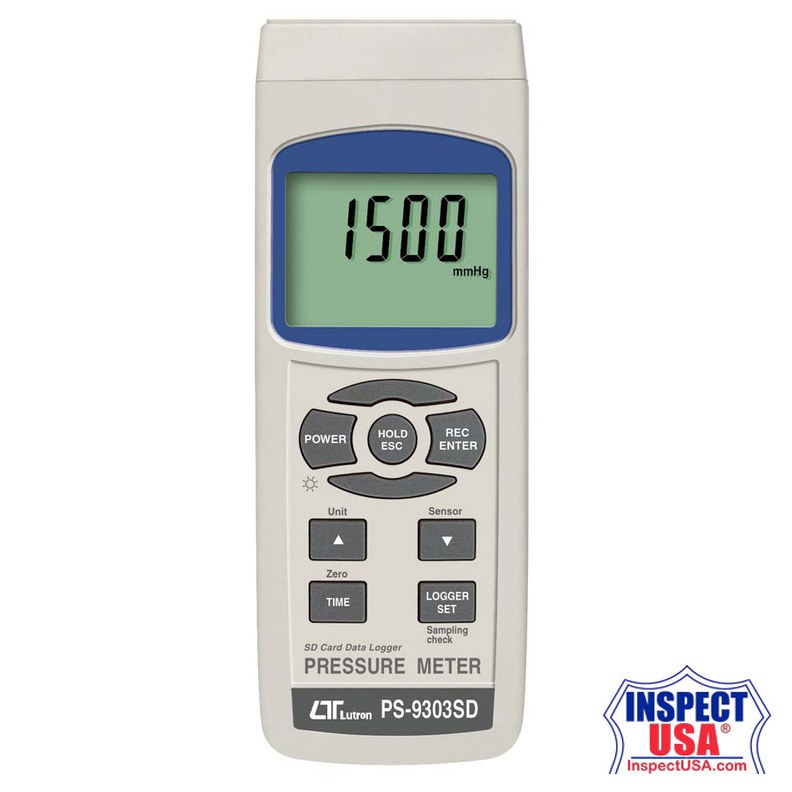

Lutron Pressure Meter (PS-9303SD)

SD Card, real time data logger, Patent.

Features:

• Meter can cooperate with 2, 5, 10, 20, 50, 100, 200, 400 Bar sensor, new calibration procedures are not necessary when change the new sensor .
• When change the new pressure sensor, just select pressure type ( 2, 5, 10, 20, 50, 100, 200, 400 bar ) on the front panel button. The sensor type will memorize into the circuit permanently.
• 8 kind pressure units ( Bar, Psi, Kg/cm^2, mm Hg, inch Hg, meter H20, inch H20, Atmosphere ), unit select by push button on the front panel.
• Full line optional pressure sensors are available.
• Cooperate the external pressure sensor that its output signal is 100 mV for full scale.
• Zero button on the front panel, easy adjust the zero value of pressure sensor.
• Available push button gain adjustment, usage for calibration precisely if necessary.
• Separate pressure sensor, easy for remote measurement.
• Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
• Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 8 hour 59 min. 59 sec.
• Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
