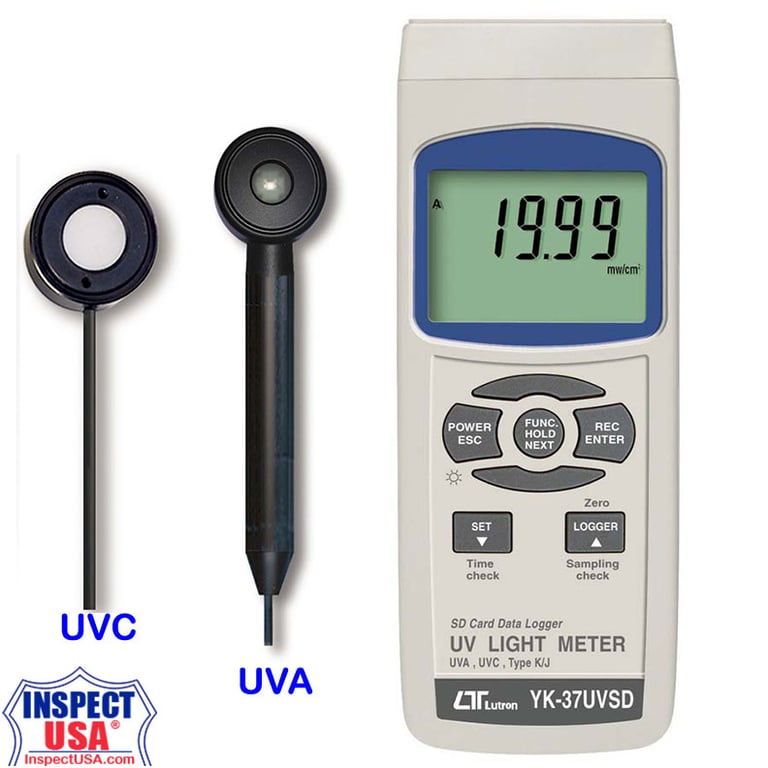

Lutron UVA & UVC Ultra-Violet Light Meter (YK-37UVSD) DataLogging

Model #: YK-37UVSD
$449.00

Print Friendly View
Add Qty to Cart:

Lutron UVA & UVC Ultra-Violet Light Meter (YK-37UVSD) DataLogging
Click to Enlarge

Reviews
First Product Previous Product Product 24 of 28 Next Product Last Product
Category Light, LUX, UV Meters

Lutron UVA and UVC High Accuracy Ultra-Violet Light Meter with Temperature Port and Data-logging onto Optional SD Card

Application for UV light measurements include : Monitoring blue light radiation hazards in welding, UV sterilization , Graphic arts, Photochemical matching, UV EPROM erasure, Photoresist exposure, Curing of inks, adhesives and coatings etc.

FEATURES

  • UVA, UVC light measurement in one meter.
  • Long wave 365 nm ultra-violet irradiance measurement. Professional UVA light meter, used to measure the UVA irradiation value under the UVA light ( black light ) source.
  • Short wave 254 nm ultra-violet irradiance measurement. Professional UVC light meter, used to measure the UVC irradiation value under the UVC light source.
  • Two ranges: 2 mW/cm^2, 20 mW/cm^2.
  • Exclusive UV sensor structure with metallic housing case.
  • UV Sensor with cosine correction filter.
  • UV function build Zero button.
  • Microprocessor circuit provides high reliability and durability.
  • Separate UV LIGHT probe allows user to measure the UV light at an optimum position.
  • Type K or Type J thermocouple temperature port
  • Audible alarm
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • LCD with green light backlight to help with easy reading in dim areas
  • Auto power off (can be disabled)
  • Data hold, record max. and min. readings
  • RS232 output

Specifications:

  • Measurement ranges:
    • Range 1: 2 mW/cm^2 with 0.001 mW/cm^2 resolution
    • Range 2: 20 mW/cm^2 with 0.01 mW/cm^2 resolution
  • Accuracy is within: 4% of full scale + 2 digits

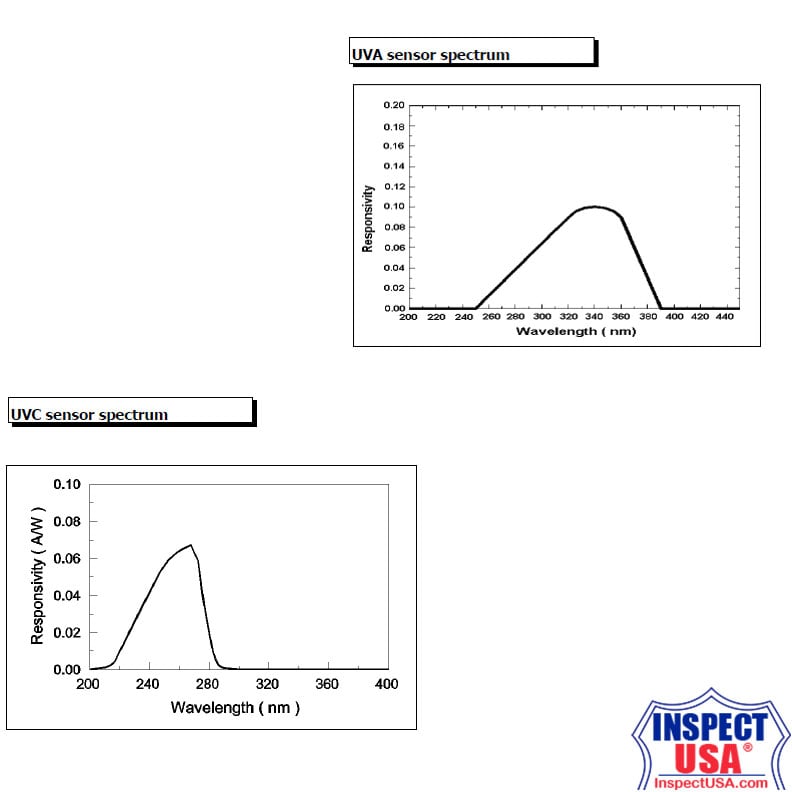

  • UV sensor spectrum range: 240nm to 390nm
  • Sampling time: approximately 1 second
  • Operating Temperature (ambient): 32 F to 122 F
    NOTE most batteries are not rated for below -4 F or above 125F
  • Operating Humidity: less than 85% RH, non-condensing
  • Power supply: (6) AA alkaline batteries or optional 9 volt DC Adapter AP-9V110
  • Power current:
    • without SD card saving data and back-light off: 6.5mA DC
    • With SD card saving data and back-light off: 30mA DC
      Note: add 16mA DC when back-light is on
  • Weight:
  • Meter: 12.5 ounces (351 grams)
  • UVA probe: 3.6 ounces (100 grams)
  • UVC probe: 3.7 ounces (103 grams)
  • Dimensions:
    • Meter: 7" x 2.8" x 1.9" (177 x 67 x 45mm)
    • UVA probe:
      • Head: (45 x 32mm diameter)
      • Handle: (125 x 24mm diameter)
    • UVC probe: (25 x 38mm diameter)

Supplied with:

Optional:

  • SD Card (from 1 to 16 GB)
  • AC to DC adapter AP-9V110
  • RS-232 cable UPCB-02
  • USB cable USB-01
  • Type K or Type J thermocouple probe

Type K and Type J Specifications (when used):

Type K 0.1 C -50.0 to 1300.0 C ( 0.4 % + 0.5 C )
-50.1 to -100.0 C ( 0.4 % + 1 C )
0.1 F -58.0 to 2372.0 F ( 0.4 % + 1 F )
-58.1 to -148.0 F ( 0.4 % + 1.8 F )
Type J 0.1 C -50.0 to 1200.0 C ( 0.4 % + 0.5 C )
-50.1 to -100.0 C ( 0.4 % + 1 C )
0.1 F -58.0 to 2192.0 F ( 0.4 % + 1 F )
-58.1 to -148.0 F ( 0.4 % + 1.8 F )
