Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

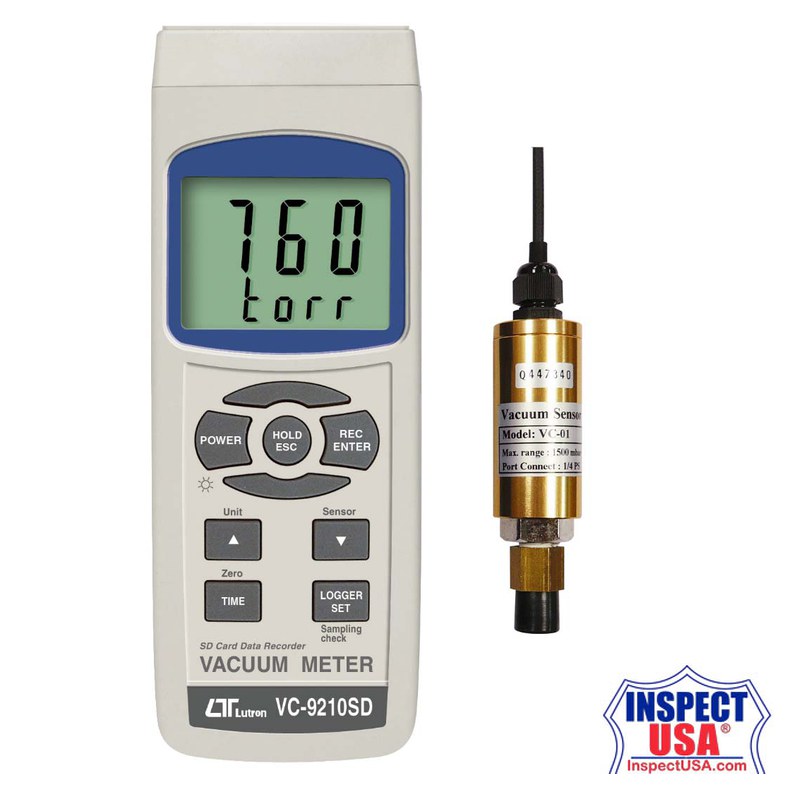

Lutron Vacuum Meter (VC-9210SD)

Reference only — not for sale

Model	VC-9210SD
Manufacturer	Lutron Instruments
Category	Manometers
Status	Discontinued

Browse all Manometers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron Vacuum Meter (VC-9210SD)

SD Card real time data recorder, Patent.

Features:

Absolute vacuum & absolute pressure measurement.
Wide measure range from 1 to 1500 mbar.
Overload protection up to 2000 mbar max.
Separate probe, easy operation.
Application : Automobile, Industrial, laboratory, heating, ventilation, medical hospital.....
Heavy duty sensor used for air, oil gas, liquid.
7 kind display units ( torr, mm Hg, mbar, KPa, hPa, inch Hg, psi ) select by push button on the front panel.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 8 hour 59 min. 59 sec.
Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
SD card capacity : 1 GB to 16 GB.
