Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

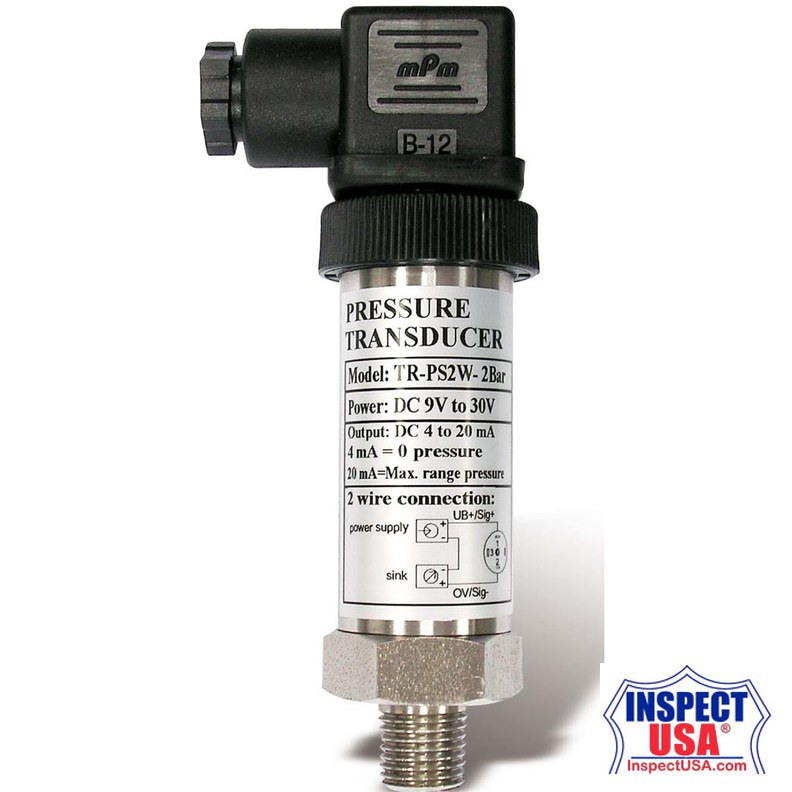

Lutron 2 Wires Pressure Transmitter (TR-PS2W)

Reference only — not for sale

Model	TR-PS2W
Manufacturer	Lutron Instruments
Status	Discontinued

Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron 2 Wires Pressure Transmitter (TR-PS2W)

Features:

Range : 2, 5, 10, 20, 50, 100, 400 BAR.
Output : 4 to 20 mA DC. 4 mA = 0 pressure 20 mA = full scale pressure
2 wires, both for signal and power supply.
Precision ceramic type pressure sensor.
External zero and span adjustment.
Allow high cable load resistance, transmitter install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-PS2W can cooperate the " 4-20 mA Controller/Alarm/Indicator " CT-2012 then become a pressure controller and the indicating system. The user can control and monitor the pressure value from far away.

Link to the technical data sheet that is provided for this Lutron Meter
